Serbatoio acqua lavacristalli/lavafari for BMW 7 Series F02 730Li
This Serbatoio acqua lavacristalli/lavafari technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vaschetta liquido di lavaggio | 1 | 61667269667 | Shop at ECS Tuning | ||||||
| 02 | Conduttura tubo flessible | 1 | 61667178747 | $17.43 | Shop at ECS Tuning | |||||
| 03 | Pompa di lavaggio faro | 1 | 67637217792 | $27.95 | Shop at ECS Tuning | |||||
| 04 | Filtro p pompa di lavaggio | 1 | 61678374382 | $3.85 | Shop at ECS Tuning | |||||
| 05 | Filtro p pompa di lavaggio | 1 | 61667006063 | $2.62 | Shop at ECS Tuning | |||||
| 06 | Pompa di lavaggio anteriore | 1 | 67126934160 | $19.53 | Shop at ECS Tuning | |||||
| 07 | Interruttore livello refrigerante | 1 | 17137553919 | $17.42 | Shop at ECS Tuning | |||||
| 08 | Vite esagonale | 1 | 07147115987 | $0.62 | Shop at ECS Tuning | |||||

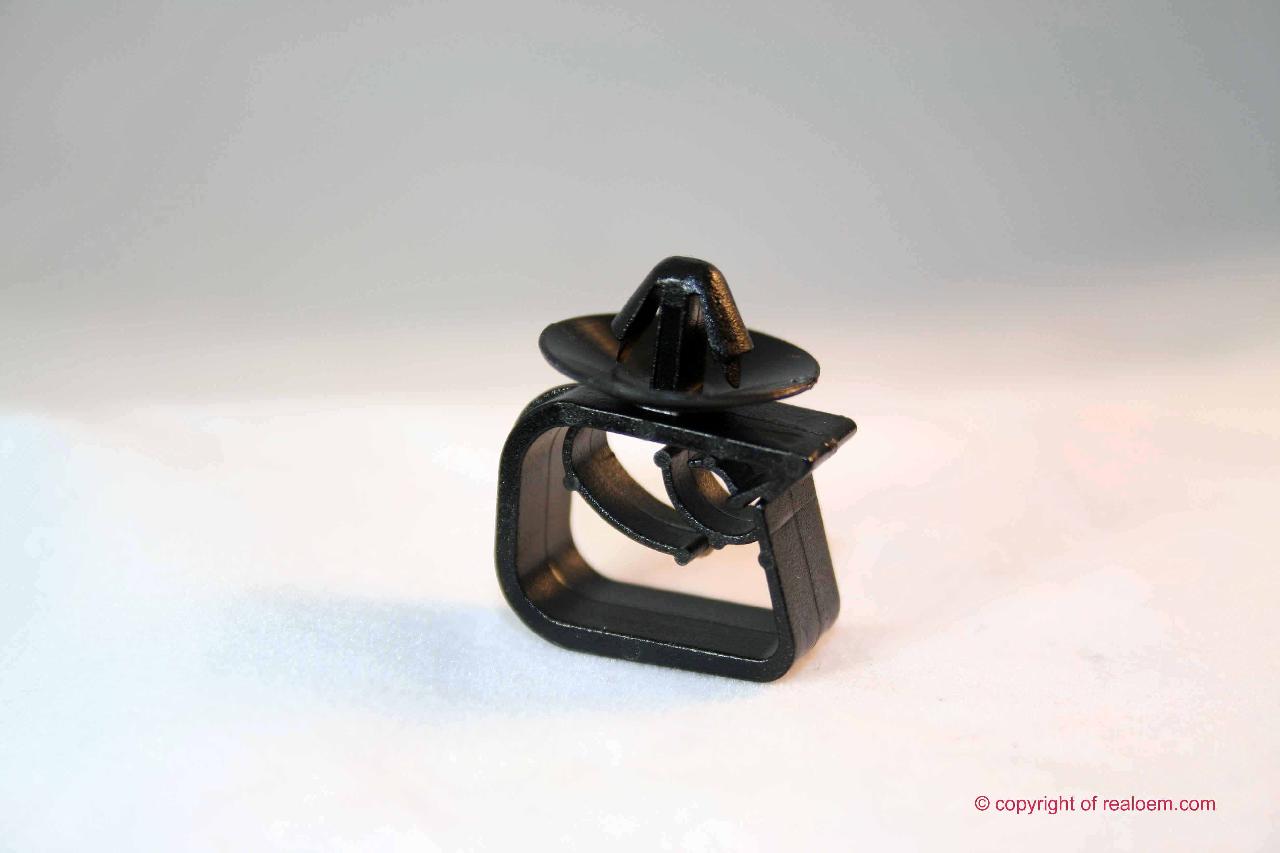

| 09 | Ferma cavo | 5 | 61138350836 | $0.42 | Shop at ECS Tuning | |||||
| 10 | Tubo di riempim. p contenitore lavaggio | 1 | 61667237777 | $41.23 | Shop at ECS Tuning | |||||
| 11 | Coperchio p tubo di riempimento | 1 | 61667238068 | $5.75 | Shop at ECS Tuning | |||||
| 12 | Supporto tubo di riempimento | 1 | 61667178750 | $1.92 | Shop at ECS Tuning | |||||
| 13 | Conduttura tubo flessible | 1 | 61667238441 | Shop at ECS Tuning | ||||||
| 14 | Vite esagonale | M6X25 | 1 | 12907576681 | Shop at ECS Tuning | |||||
| 16 | Set di ripar. tubo fless. tergicristallo | X | 61667208073 | $16.98 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 730Li Serbatoio acqua lavacristalli/lavafari?
- This technical diagram illustrates the Serbatoio acqua lavacristalli/lavafari within the Impianto elettrico della vettura group for the 7 Series F02 730Li. It provides a detailed exploded view of the components, identifying key parts such as the Vaschetta liquido di lavaggio (Part #61667269667).
- Which models use the hardware listed in this Serbatoio acqua lavacristalli/lavafari?
- The hardware and components featured in the Serbatoio acqua lavacristalli/lavafari are specific to the 7 Series F02 730Li. These technical specifications ensure that parts like the Vaschetta liquido di lavaggio (61667269667) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Serbatoio acqua lavacristalli/lavafari assembly?
- Each item in the Serbatoio acqua lavacristalli/lavafari corresponds to the numbered list below the illustration. For the 7 Series F02 730Li, you can identify the Vaschetta liquido di lavaggio by locating its position on the schematic, which then links to the official BMW part number 61667269667 for the Impianto elettrico della vettura section.
