Cavo riparaz.cabl.princip. ant./ coass. for BMW 4 Series G22 Coupé LCI 430i

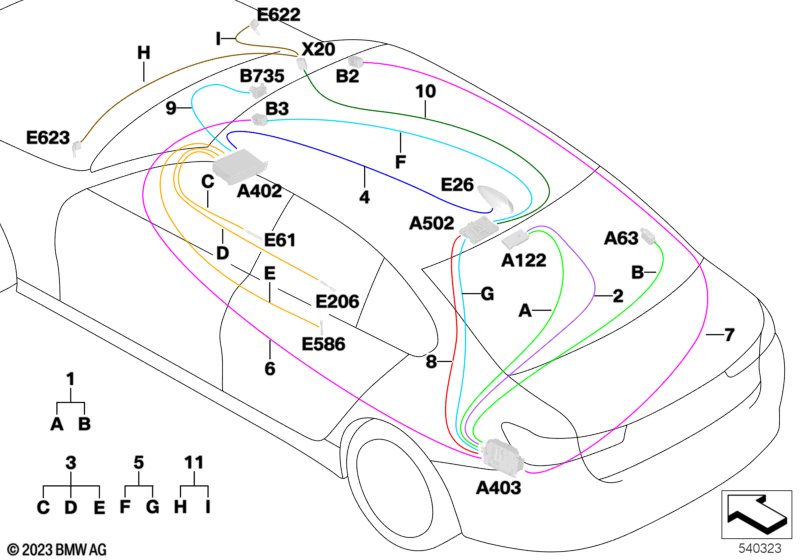

This Cavo riparaz.cabl.princip. ant./ coass. technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI 430i. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Per veicoli con Versione per Corea e Modulo di ricezione DAB |
L802A=Sì S654A=Sì |
|||||||||
| 01 | Modulo di riparazione antenne DAB | L= 2672MM | 1 | 61115A4CEB4 | Shop at ECS Tuning | |||||
| Per veicoli con Versione per Corea e Modulo di ricezione DAB |
L802A=Sì S654A=Non |
|||||||||
| 01 | Modulo di riparazione antenne DAB | L= 2672MM | 1 | 61115A4CEB4 | Shop at ECS Tuning | |||||
| Per veicoli con Versione per Corea e Modulo di ricezione DAB |
L802A=Non S654A=Sì |
|||||||||
| 01 | Modulo di riparazione antenne DAB | L= 2672MM | 1 | 61115A4CEB4 | Shop at ECS Tuning | |||||
| Per veicoli con Versione per japan e Funzione TV |
L807A=Sì S601A=Sì |
|||||||||
| 01 | Modulo riparazione cavi antenna RAM | L= 2872MM | 1 | 61115A84888 | NoS | Shop at ECS Tuning | ||||
| 02 | Modulo riparazione cavi antenna FM1/FM2 | L= 2251MM | 1 | 61115A11B30 | Shop at ECS Tuning | |||||
| 03 | Modulo rip.cavo antenna Wi-Fi/ Bluetooth | L= 1158MM | 1 | 07/2024 | 61115A84880 | NoS | Shop at ECS Tuning | |||
| 03 | Modulo rip.cavo antenna Wi-Fi/ Bluetooth | L= 1158 MM | 1 | 61115A71963 | Shop at ECS Tuning | |||||
| 04 | Cavo dell'antenna GPS | L=4865MM | 1 | 61115A11B40 | Shop at ECS Tuning | |||||
| 05 | Modulo rip.linea inguainata con scherm. | L= 7029MM | 1 | 61115A848B6 | NoS | Shop at ECS Tuning | ||||
| 06 | Cavo di riparazione microfono | L= 6394MM | 1 | 61115A848B4 | NoS | Shop at ECS Tuning | ||||
| 07 | Cavo di riparazione microfono | L= 5129MM | 1 | 61115A4CEF7 | Shop at ECS Tuning | |||||
| 08 | Cavo dell'antenna SDARS | L= 2115MM | 1 | 61115A84886 | NoS | Shop at ECS Tuning | ||||
| 09 | Cavo dell'antenna | L= 4401MM | 1 | 61115A86BC1 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Personal eSIM |
S6PAA=Sì |
|||||||||
| 10 | Linea di antenna, telefono | L= 4540MM | 1 | 07/2024 | 61115A84887 | NoS | Shop at ECS Tuning | |||
| 10 | Modulo rip.cavo antenna Dual Sim | L= 4790 MM | 1 | 61115A71960 | Shop at ECS Tuning | |||||
| 11 | Modulo rip.cavo antenna Dual Sim Active | L= 537MM | 1 | 61115A86A99 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Personal eSIM |
S6PAA=Sì |
|||||||||
| 11 | Modulo rip.cavo antenna Dual Sim Active | 1 | 07/2022 | 61115A45A03 | Shop at ECS Tuning | |||||
| 11 | Modulo rip.cavo antenna Dual Sim Active | L= 537MM | 1 | 03/2024 | 61115A4C048 | Shop at ECS Tuning | ||||
Note
- NoS = No Stock (Componente non pres. nel magazzino cent.)
