Luce posteriore for BMW 5 Series E39 528i (2000)

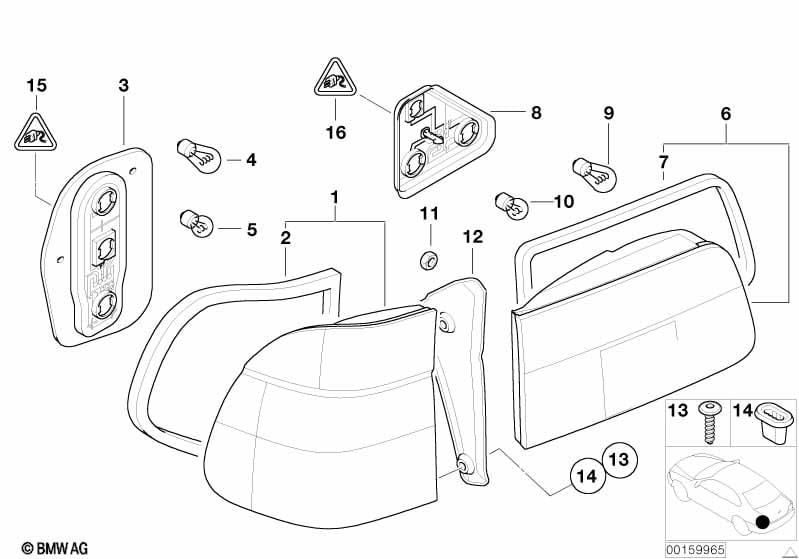

This Luce posteriore technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fanale fiancata posteriore sinistra | 1 | 09/2000 | 63218371327 | $148.43 | +rest. | Shop at ECS Tuning | |||
| 01 | Fanale fiancata posteriore destra | 1 | 09/2000 | 63218371328 | $138.92 | +rest. | Shop at ECS Tuning | |||
| 01 | Fanale fiancata posteriore bianco sx. | 1 | 09/2000 | 63212496321 | $156.24 | +rest. | Shop at ECS Tuning | |||
| COMPRENDE FRA L'ALTRO PORTALAMPADA |
||||||||||
| 01 | Fanale fiancata posteriore bianco dx. | 1 | 09/2000 | 63212496322 | $156.24 | Shop at ECS Tuning | ||||
| COMPRENDE FRA L'ALTRO PORTALAMPADA |
||||||||||
| 02 | Guarnizione fanale post.fiancata sin. | 1 | 63218386863 | $7.46 | Shop at ECS Tuning | |||||
| 02 | Guarnizione fanale post.fiancata destra | 1 | 63218386864 | $7.46 | Shop at ECS Tuning | |||||
| 03 | Portalampada p indicatore direz.bianco | 2 | 63212496339 | +rest. | Shop at ECS Tuning | |||||
| 03 | Portalampada | 2 | 63218371324 | $38.32 | +rest. | Shop at ECS Tuning | ||||
| 04 | Lampada a incandescenza | P21W/12V/21W | 4 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 04 | Lampadina Longlife | P21W/12V/21W | 4 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 04 | Lampada a incand.giallo | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| solo adatto per luce stop | ||||||||||
| 04 | Lampadina Longlife | 12V 21W | 2 | 63128370309 | $3.29 | TERMINATO | Shop at ECS Tuning | |||
| 05 | Lampada a incandescenza | 12V 5W | 2 | 09/2000 | 07119905336 | $1.58 | Shop at ECS Tuning | |||
| 06 | Luce nel cofano posteriore sinistra | 1 | 09/2000 | 63218371329 | $132.80 | Shop at ECS Tuning | ||||
| 06 | Luce nel cofano posteriore destra | 1 | 09/2000 | 63218371330 | $132.80 | Shop at ECS Tuning | ||||
| Per veicoli con Versione per japan |
L807A=Sì |
|||||||||
| 06 | Luce nel cofano posteriore sinistra | 1 | 09/2000 | 63218380091 | TERMINATO, +rest. | Shop at ECS Tuning | ||||
| 06 | Luce nel cofano posteriore destra | 1 | 09/2000 | 63218380092 | TERMINATO, +rest. | Shop at ECS Tuning | ||||
| 07 | Guarniz.fanale post., cofano portabagagl | 2 | 63218371332 | $10.25 | TERMINATO | Shop at ECS Tuning | ||||
| 08 | Portalampada sinistra | 1 | 63218371325 | $38.32 | Shop at ECS Tuning | |||||
| 08 | portalampada destra | 1 | 63218371326 | $38.32 | +rest. | Shop at ECS Tuning | ||||
| 09 | Lampada a incandescenza | P21W/12V/21W | 4 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 09 | Lampadina Longlife | P21W/12V/21W | 4 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 10 | Lampada a incandescenza | 12V 5W | 2 | 09/2000 | 07119905336 | $1.58 | Shop at ECS Tuning | |||
| 11 | Dado esagonale con piastra | M5 | X | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 12 | Copertura di fanale posteriore sinistra | SCHWARZ | 1 | 51718218925 | $12.17 | TERMINATO | Shop at ECS Tuning | |||
| 12 | Copertura di fanale posteriore destra | SCHWARZ | 1 | 51718218926 | $12.17 | TERMINATO | Shop at ECS Tuning | |||
| 13 | Vite | 4 | 62118375035 | $0.28 | Shop at ECS Tuning | |||||
| 14 | Bocchetta | 12X6,3 | 4 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Scatola del connettore | 4 POL. | 2 | 61131378134 | $4.27 | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Spina femmina tonda 2.5 con cavo | 1,5-2,5 MM² AG | X | 61132466429 | Shop at ECS Tuning | |||||
| -- | Spina femmina tonda 2.5 con cavo | 0,5-1,0 MM² SN | X | 61135A07B73 | Shop at ECS Tuning | |||||
| 16 | Scatola del connettore | 4 POL. | 10 | 61131378134 | $4.27 | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Spina femmina tonda 2.5 con cavo | 1,5-2,5 MM² AG | 10 | 61132466429 | Shop at ECS Tuning | |||||
| -- | Spina femmina tonda 2.5 con cavo | 0,5-1,0 MM² SN | 10 | 61135A07B73 | Shop at ECS Tuning | |||||
Note
- +rest. = possibilità di restituzione della parte originale
- TERMINATO = Il ricambio è fuori produzione.
