Lampeggiatore anteriore/anteriore later. for BMW 3 Series E46 323i (2000)

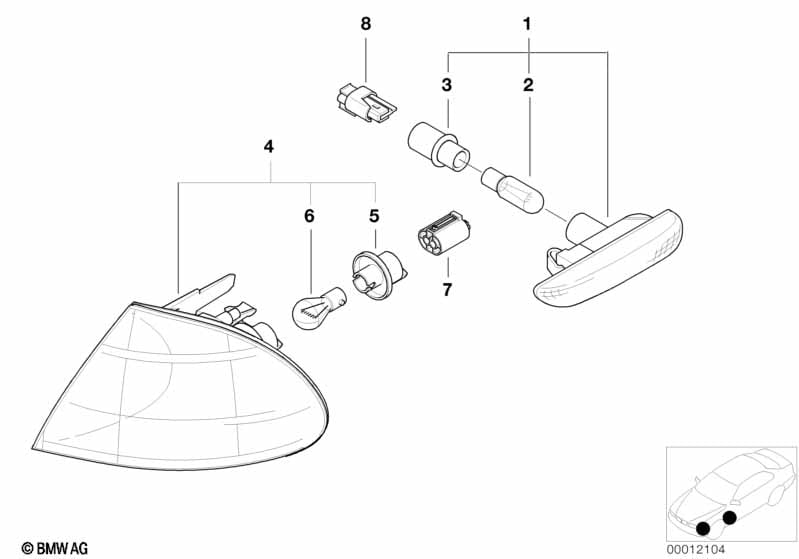

This Lampeggiatore anteriore/anteriore later. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lampeggiatore supplementare sinistra | 1 | 09/2001 | 63138370719 | $24.57 | Shop at ECS Tuning | ||||
| 01 | Lampeggiatore supplementare destra | 1 | 09/2001 | 63138370720 | $24.57 | Shop at ECS Tuning | ||||
| Per veicoli con Indicatori di direzione bianchi |
S785A=Sì |
|||||||||
| 01 | Lampeggiatore supplementare sx. bianco | 1 | 09/2001 | 63132228591 | $24.57 | Shop at ECS Tuning | ||||
| 01 | Lampeggiatore supplementare dx. bianco | 1 | 09/2001 | 63132228592 | $24.57 | Shop at ECS Tuning | ||||
| 02 | Lampadina Longlife | 5W | 2 | 09/2001 | 63217160797 | $1.96 | Shop at ECS Tuning | |||
| Per veicoli con Indicatori di direzione bianchi |
S785A=Sì |
|||||||||
| 02 | Lampada a incand.giallo | 12V 5W | 2 | 09/2001 | 63217160798 | $2.96 | Shop at ECS Tuning | |||
| 02 | Lampada argento | 12V 5W | 2 | 09/2001 | 63217165496 | $7.50 | Shop at ECS Tuning | |||
| 02 | Lampada Polar | 12V 5W BLUE | 2 | 09/2001 | 07500030663 | $19.40 | TERMINATO | Shop at ECS Tuning | ||
| 02 | Kit riequipagg. lampad. incand.argent. | 2 | 09/2001 | 63120420391 | $86.00 | TERMINATO, +rest. | Shop at ECS Tuning | |||
| 03 | Portalampada | 2 | 09/2001 | 63138360205 | $7.32 | Shop at ECS Tuning | ||||
| 04 | Lampeggiatore anteriore sinistra | 1 | 09/2001 | 63136902765 | $32.57 | Shop at ECS Tuning | ||||
| 04 | Lampeggiatore anteriore destra | 1 | 09/2001 | 63136902766 | $32.57 | Shop at ECS Tuning | ||||
| Per veicoli con Indicatori di direzione bianchi |
S785A=Sì |
|||||||||
| 04 | Lampeggiatore ant.sinistra bianco | 1 | 09/2001 | 63136902769 | $49.60 | Shop at ECS Tuning | ||||
| 04 | Lampeggiatore ant.destro bianco | 1 | 09/2001 | 63136902770 | $49.60 | Shop at ECS Tuning | ||||
| 05 | Portalampada lampada ad incandes. giallo | 2 | 09/2001 | 63136904823 | $16.18 | Shop at ECS Tuning | ||||
| Per veicoli con Indicatori di direzione bianchi |
S785A=Non |
|||||||||
| 05 | Portalampada | 2 | 09/2001 | 63138380211 | $10.25 | Shop at ECS Tuning | ||||
| 06 | Lampada a incandescenza | P21W/12V/21W | 2 | 09/2001 | 63217160789 | $1.96 | Shop at ECS Tuning | |||
| 06 | Lampadina Longlife | P21W/12V/21W | 2 | 09/2001 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| Per veicoli con Indicatori di direzione bianchi |
S785A=Sì |
|||||||||
| 06 | Lampada a incand.giallo | PY21W/12V/21W | 2 | 09/2001 | 63217160791 | $5.58 | Shop at ECS Tuning | |||
| 07 | Involucro presa corr. univ.senza codice | 2 POL. | 2 | 09/2001 | 61138373332 | $2.70 | Shop at ECS Tuning | |||
| solo in collegamento con | ||||||||||
| -- | Contatto a boccola ELO-PowerELA con cavo | 0,2- 0,5 MM² SN | 4 | 09/2001 | 61130070581 | Shop at ECS Tuning | ||||
| 08 | Involucro presa corr. univ.senza codice | 2 POL. | 2 | 09/2001 | 61138795954 | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Contatto a boccola MQS ELA con cavo | 0,5-0,75 MM² AG | X | 09/2001 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contatto a boccola MQS ELA con cavo | 0,35-0,5 MM² AG | X | 09/2001 | 61130056961 | Shop at ECS Tuning | ||||
| 08 | Kit di rip. scatola boccole | 2 POL. | 2 | 09/2001 | 61132359999 | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
- +rest. = possibilità di restituzione della parte originale
