Luce posteriore for BMW 3 Series E46 323i (2000)

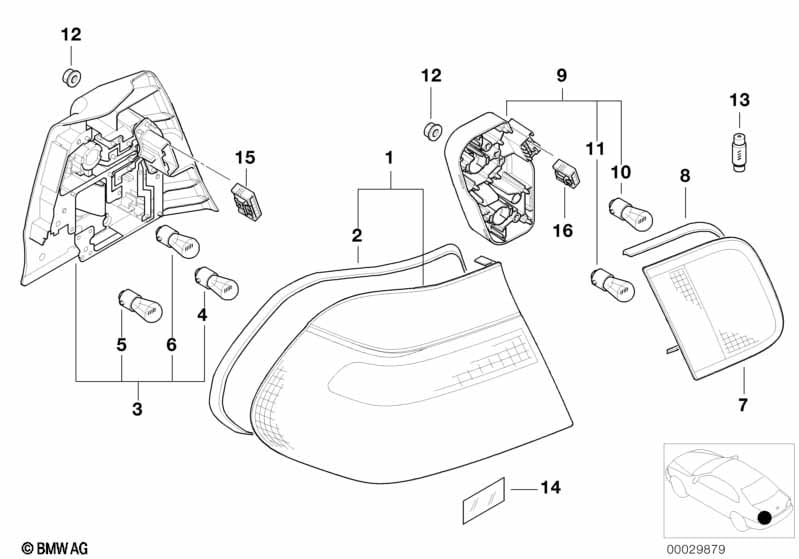

This Luce posteriore technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fanale fiancata posteriore sinistra | 1 | 09/2001 | 63218364921 | $131.52 | Shop at ECS Tuning | ||||
| 01 | Fanale fiancata posteriore destra | 1 | 09/2001 | 63218364922 | $131.52 | +rest. | Shop at ECS Tuning | |||
| Per veicoli con Indicatori di direzione bianchi |
S785A=Sì |
|||||||||
| 01 | Fanale fiancata posteriore bianco sx. | 1 | 09/2001 | 63218383821 | $146.30 | +rest. | Shop at ECS Tuning | |||
| 01 | Fanale fiancata posteriore bianco dx. | 1 | 09/2001 | 63218383822 | $146.30 | +rest. | Shop at ECS Tuning | |||
| 02 | Guarnizione di fanale posteriore | 1 | 63218374800 | $7.09 | Shop at ECS Tuning | |||||
| 03 | Portalampada sinistra | TITAN | 1 | 09/2001 | 63217165955 | $63.63 | Shop at ECS Tuning | |||
| 03 | portalampada destra | TITAN | 1 | 09/2001 | 63217165956 | $63.63 | +rest. | Shop at ECS Tuning | ||
| Per veicoli con Indicatori di direzione bianchi |
S785A=Sì |
|||||||||
| 03 | Portalampada sinistra | TITAN | 1 | 09/2001 | 63217165953 | $71.73 | Shop at ECS Tuning | |||
| 03 | portalampada destra | TITAN | 1 | 09/2001 | 63217165954 | $71.73 | Shop at ECS Tuning | |||
| SOLO ADATTO PER FANALE POSTERIORE | ||||||||||
| 04 | Lampada a incandescenza | 12V 21/4W | 2 | 63217160792 | $3.00 | Shop at ECS Tuning | ||||
| 05 | Lampada a incandescenza | P21W/12V/21W | 4 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Lampadina Longlife | P21W/12V/21W | 4 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| solo adatto per lampeggiatore di direzione |
||||||||||
| 06 | Lampada a incandescenza | P21W/12V/21W | 2 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Lampadina Longlife | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| Per veicoli con Indicatori di direzione bianchi |
S785A=Sì |
|||||||||
| 06 | Lampada a incand.giallo | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 07 | Luce nel cofano posteriore sinistra | 1 | 09/2001 | 63218364923 | $62.00 | +rest. | Shop at ECS Tuning | |||
| 07 | Luce nel cofano posteriore destra | 1 | 09/2001 | 63218364924 | $62.00 | +rest. | Shop at ECS Tuning | |||
| 08 | Guarniz.fanale post., cofano portabagagl | 2 | 63218374801 | $3.09 | Shop at ECS Tuning | |||||
| 09 | Portalampada sinistra | 1 | 09/2001 | 63217165843 | TERMINATO | Shop at ECS Tuning | ||||
| 09 | portalampada destra | 1 | 09/2001 | 63217165844 | $8.37 | TERMINATO | Shop at ECS Tuning | |||
| Per veicoli con Retronebbia |
=Sì |
|||||||||
| 09 | Portalampada sinistra | 1 | 09/2001 | 63218374807 | $26.27 | Shop at ECS Tuning | ||||
| 09 | portalampada destra | 1 | 09/2001 | 63218374808 | $26.27 | Shop at ECS Tuning | ||||
| solo adatto per luce di retromarcia | ||||||||||
| 10 | Lampada a incandescenza | P21W/12V/21W | 2 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 10 | Lampadina Longlife | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| Per veicoli con Retronebbia |
=Sì |
|||||||||
| 11 | Lampada a incandescenza | P21W/12V/21W | 2 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 11 | Lampadina Longlife | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 12 | Dado esagonale con piastra | M6 ZNT | 10 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| SOLO ADATTO PER LUCE NEL BAGAGLIAIO |
||||||||||
| 13 | Lampada a incandescenza | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 14 | Pellicola protettiva | 40X40MM | 2 | 51718102827 | $0.63 | Shop at ECS Tuning | ||||
| 15 | Involucro presa di corrente | 6 POL. | 2 | 09/2001 | 61138369702 | $0.75 | Shop at ECS Tuning | |||
| solo in collegamento con | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 12 | 09/2001 | 61130056965 | Shop at ECS Tuning | ||||
| 16 | Involucro presa corr.univ.MPQ senza code | 3 POL. | 2 | 61136984742 | $3.17 | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 6 | 61130056965 | Shop at ECS Tuning | |||||
Note
- +rest. = possibilità di restituzione della parte originale
- TERMINATO = Il ricambio è fuori produzione.
