Terzo fanale freno for BMW 3 Series E46 325xi (2001)

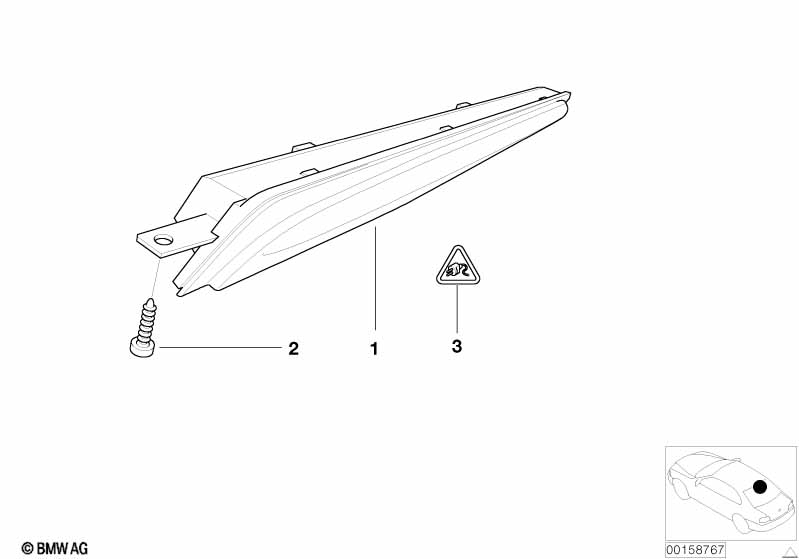

This Terzo fanale freno technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Terzo fanale freno blanco | 1 | 63256917540 | $99.25 | Shop at ECS Tuning | |||||
| 01 | Terzo fanale freno | 1 | 63258368764 | $99.25 | Shop at ECS Tuning | |||||
| 02 | Vite testa cil. | M4X6 | 2 | 07119907657 | $0.13 | Shop at ECS Tuning | ||||
| al cablaggio principale | ||||||||||
| 03 | Involucro presa corr. univ.senza codice | 2 POL. | 1 | 61138795954 | Shop at ECS Tuning | |||||
| solo in collegamento con | ||||||||||
| -- | Contatto boccola MQS ELA | 0.2-0.5 MM² SN | 1 | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Contatto boccola MQS ELA | 0,5-0,75 MM² AG | 1 | 61136931880 | Shop at ECS Tuning | |||||
| 03 | Kit di rip. scatola boccole | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| sul corpo della luce di stop | ||||||||||
| 03 | Involucro perno univ.senza codice | 2 POL. | 1 | 61138366275 | $6.90 | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Contatto a spina MQS ELA con cavo | 0,2- 0,5MM² | 1 | 61130005200 | $2.00 | Shop at ECS Tuning | ||||
| -- | Contatto a spina MQS ELA con cavo | 0,75 QMM | 1 | 61130006666 | $2.15 | Shop at ECS Tuning | ||||
