Pezzi d.carter riscal. strumenti microf. for BMW 5 Series E34 525i (1990)

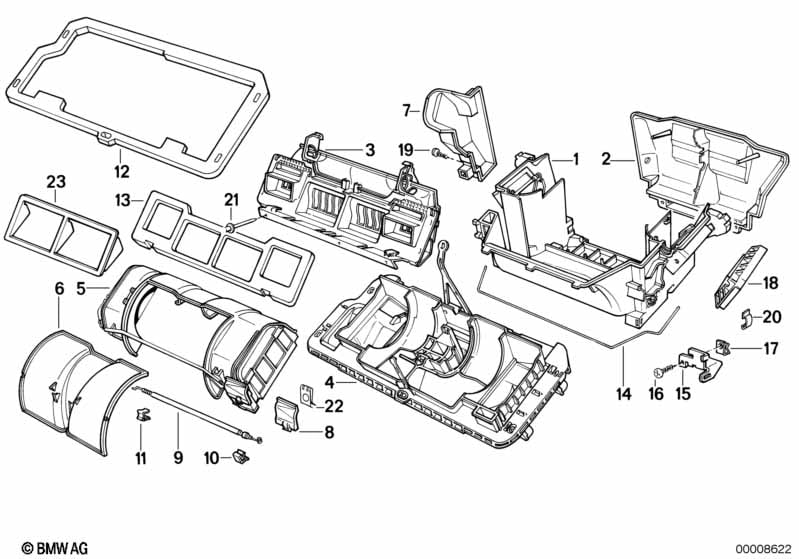

This Pezzi d.carter riscal. strumenti microf. technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carter parte inf. | 1 | 09/1991 | 64118351153 | $162.94 | TERMINATO | Shop at ECS Tuning | |||
| 02 | Carter parte posteriore | 1 | 09/1993 | 64118351161 | $67.80 | TERMINATO | Shop at ECS Tuning | |||
| 03 | Carter parte centrale | 1 | 09/1993 | 64111374392 | $210.15 | Shop at ECS Tuning | ||||
| 04 | Carter parte inferiore | 1 | 09/1993 | 64118390145 | $164.05 | TERMINATO | Shop at ECS Tuning | |||
| 05 | Carter parte superiore | 1 | 09/1993 | 64111374394 | $87.78 | TERMINATO | Shop at ECS Tuning | |||
| 06 | Coperchio | 1 | 09/1993 | 64111374364 | $25.46 | Shop at ECS Tuning | ||||
| 07 | Coperchio | 1 | 09/1993 | 64111382916 | $21.32 | TERMINATO | Shop at ECS Tuning | |||
| 08 | Cappuccio | 1 | 09/1993 | 64111374348 | $1.25 | TERMINATO | Shop at ECS Tuning | |||
| 09 | Cavo Bowden | 1 | 09/1993 | 64111374363 | $15.37 | Shop at ECS Tuning | ||||
| 10 | Clip | 1 | 09/1993 | 64111358563 | $1.83 | Shop at ECS Tuning | ||||
| 11 | Clip | 1 | 09/1993 | 64111368019 | $1.12 | Shop at ECS Tuning | ||||
| 12 | Cornice di tenuta | 1 | 09/1993 | 64111374357 | $51.18 | Shop at ECS Tuning | ||||
| 13 | Cornice di tenuta | 1 | 09/1993 | 64118351170 | $51.18 | Shop at ECS Tuning | ||||
| 14 | Gomma di tenuta | 1500MM | 1 | 09/1993 | 64111374109 | $7.15 | Shop at ECS Tuning | |||
| 15 | Sostegno sinistra | 1 | 09/1993 | 64111378759 | $5.77 | Shop at ECS Tuning | ||||
| 16 | Vite lenticolare di lamiera | ST4,8X16 Z2 | 2 | 09/1993 | 07119907789 | $0.13 | TERMINATO | Shop at ECS Tuning | ||
| 17 | Dado per lamiera | ST4,8-9-ZNS3 | 2 | 09/1993 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 18 | Guarnizione | 1 | 09/1993 | 64111379577 | $28.07 | Shop at ECS Tuning | ||||
| 19 | Vite testa cil. | X | 09/1993 | 07147195855 | Shop at ECS Tuning | |||||
| 20 | Sostegno parte laterale | 1 | 09/1993 | 64118350037 | $1.20 | TERMINATO | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
