Climatizzatore-relais/interr./kit cavi for BMW 5 Series E12 528i

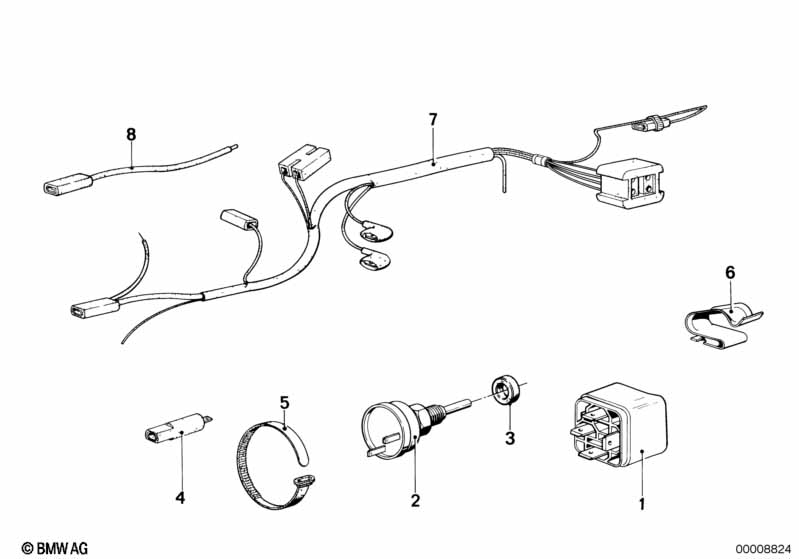

This Climatizzatore-relais/interr./kit cavi technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relais | GELB | 1 | 61311373585 | $23.75 | TERMINATO | Shop at ECS Tuning | |||
| 01 | Minirelais | 1 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 04 | Diodo | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| 05 | Legacavi | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Corredo d.cavo condizionamento aria | 1 | 02/1977 | 09/1979 | 61121364447 | Shop at ECS Tuning | ||||
| 07 | Corredo d.cavo condizionamento aria | 1 | 09/1979 | 61121367639 | TERMINATO | Shop at ECS Tuning | ||||
| 08 | Cavo | 1 | 61121359138 | TERMINATO | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
