Evaporatore / Valvola di espansione for BMW 3 Series G20 Berlina LCI 330iX (2021)

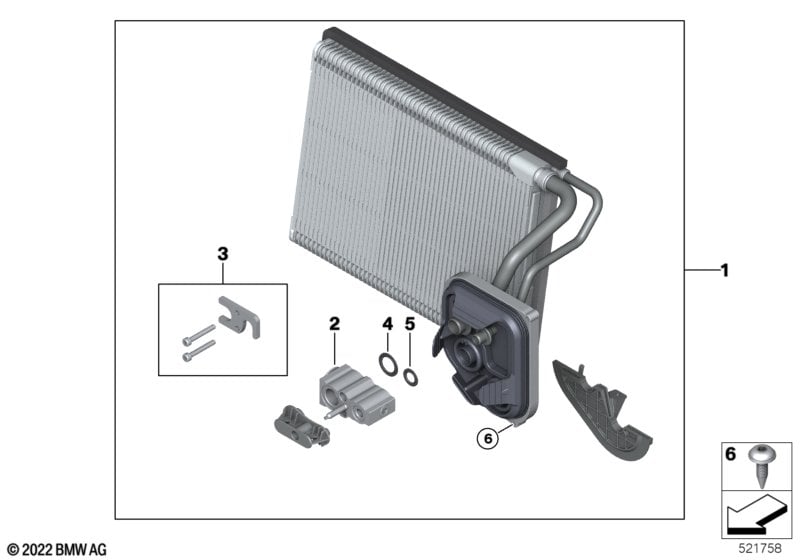

This Evaporatore / Valvola di espansione technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Berlina LCI 330iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Evaporatore con valvola di espansione | 1 | 64119382867 | Shop at ECS Tuning | ||||||
| 02 | Valvola di espansione | 1 | 64116994989 | Shop at ECS Tuning | ||||||
| 03 | Kit di montaggio valvola ad espansione | 1 | 64119382868 | Shop at ECS Tuning | ||||||
| 04 | Anello di tenuta | D=17MM | 1 | 64539284019 | Shop at ECS Tuning | |||||
| 05 | Anello di tenuta | D=11MM | 1 | 64539284018 | Shop at ECS Tuning | |||||
| 06 | Vite testa cil. | 3 | 07149356986 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Berlina LCI 330iX Evaporatore / Valvola di espansione?
- This technical diagram illustrates the Evaporatore / Valvola di espansione within the Riscaldamento e climatizzazione group for the 3 Series G20 Berlina LCI 330iX produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Evaporatore con valvola di espansione (Part #64119382867).
- Which models use the hardware listed in this Evaporatore / Valvola di espansione?
- The hardware and components featured in the Evaporatore / Valvola di espansione are specific to the 3 Series G20 Berlina LCI 330iX produced during 2021. These technical specifications ensure that parts like the Evaporatore con valvola di espansione (64119382867) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Evaporatore / Valvola di espansione assembly?
- Each item in the Evaporatore / Valvola di espansione corresponds to the numbered list below the illustration. For the 3 Series G20 Berlina LCI 330iX, you can identify the Evaporatore con valvola di espansione by locating its position on the schematic, which then links to the official BMW part number 64119382867 for the Riscaldamento e climatizzazione section.
