Tub.fluido refrigerante sotto pavimento for BMW 5 Series G60 Berlina 550eX (2025)

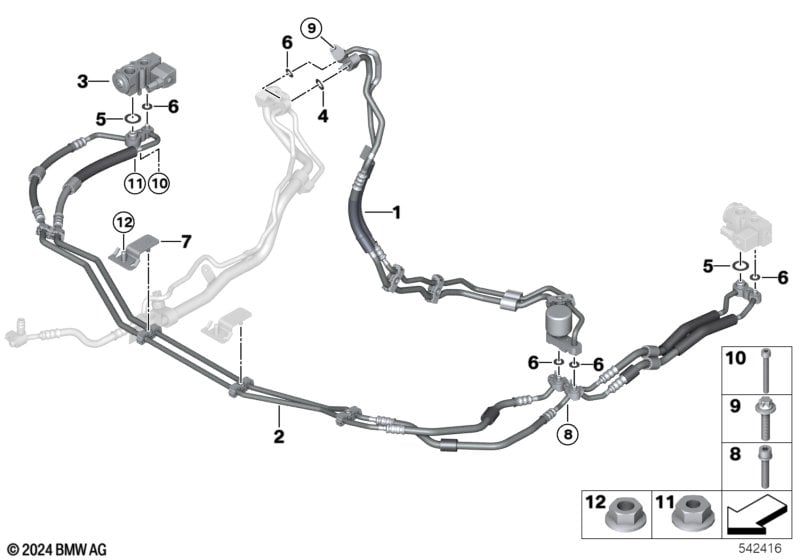

This Tub.fluido refrigerante sotto pavimento technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Berlina 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubo doppio | 1 | 64505A711A4 | Shop at ECS Tuning | ||||||
| 02 | Tubo doppio | 1 | 64539872123 | Shop at ECS Tuning | ||||||
| 03 | Valvola ad espansione elettrica | 2 | 64505A0F0D0 | Shop at ECS Tuning | ||||||
| 04 | Anello di tenuta | D=11MM | 1 | 64539284018 | Shop at ECS Tuning | |||||
| 05 | Anello di tenuta | D=17MM | 2 | 64539284019 | Shop at ECS Tuning | |||||
| 06 | Anello di tenuta | D=8MM | 5 | 64539284020 | Shop at ECS Tuning | |||||
| 07 | Supporto | 2 | 64509873902 | Shop at ECS Tuning | ||||||
| 08 | Vite ISA | M6X30-10.9 | 2 | 07129905795 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Vite esagonale tonda | BM6 X 25 | 1 | 07119908428 | Shop at ECS Tuning | |||||
| 10 | Vite | 4 | 64509909280 | Shop at ECS Tuning | ||||||
| 11 | Dado esagonale | M6-10-ZNNIV SI | 2 | 07129907467 | Shop at ECS Tuning | |||||
| 12 | Dado esagonale con piastra | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning |
