Pezzi singolo sistema stereoscopica for BMW 3 Series E30 320i (1990)

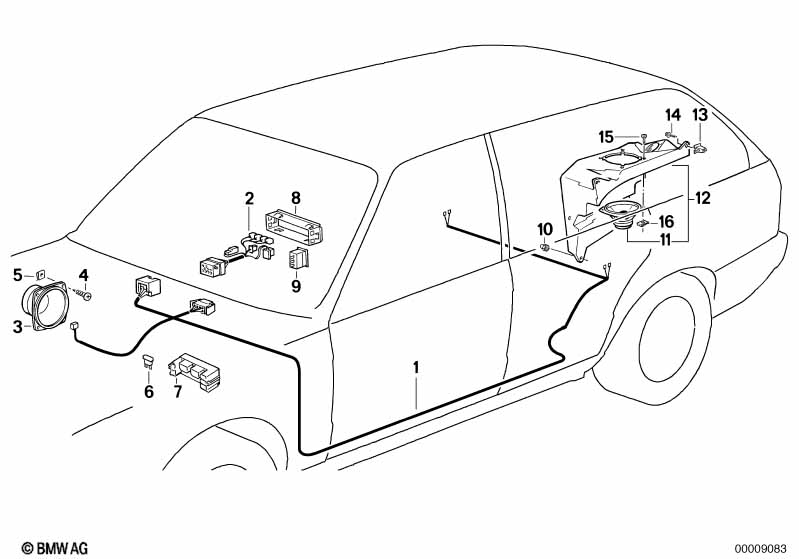

This Pezzi singolo sistema stereoscopica technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Serie di cavi | STEREO | 1 | 09/1989 | 61121394212 | TERMINATO | Shop at ECS Tuning | |||
| SOLO ADATTO PER RADIO BAVARIA C RADIO BAVARIA C REVERSE RADIO MEXICO ELECTRONIC CR SAFETY |
||||||||||
| 02 | Adattatore condotto p sistema stereo | 2-KANAL | 1 | 09/1989 | 65128350188 | $56.15 | TERMINATO | Shop at ECS Tuning | ||
| SOLO ADATTO PER RADIO BAVARIA ELECTRONIC CD |
||||||||||
| 02 | Condotto adattatore | 4-KANAL | 1 | 09/1989 | 65128350007 | $57.17 | TERMINATO | Shop at ECS Tuning | ||
| SOLO ADATTO PER RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 02 | Adattatore condotto p sistema stereo | 4-KANAL | 1 | 09/1989 | 65128350189 | $56.15 | TERMINATO | Shop at ECS Tuning | ||
| 03 | Altoparlante | 2 | 09/1989 | 65131386541 | Shop at ECS Tuning | |||||
| 04 | Vite lenticolare di lamiera | ST4,2X16-ABW | 6 | 09/1989 | 07119906749 | $0.11 | Shop at ECS Tuning | |||
| 05 | Dado di scartamento | ST 4.8 WEISS | 6 | 09/1989 | 63171367868 | $0.60 | Shop at ECS Tuning | |||
| 06 | Fusibile beige | 5A | 1 | 09/1989 | 61131372523 | Shop at ECS Tuning | ||||
| 06 | Dispositivo di sicurezza | 5A | 1 | 09/1989 | 61131386626 | $0.75 | TERMINATO | Shop at ECS Tuning | ||
| 07 | Scatola del connettore | 1 | 09/1989 | 62111372218 | $7.86 | TERMINATO | Shop at ECS Tuning | |||
| 08 | Telaio | 1 | 09/1989 | 65121375737 | $13.10 | Shop at ECS Tuning | ||||
| 09 | Regol.d.dissolv.incrociata c spina ronda | 1 | 09/1989 | 65121379048 | $39.55 | Shop at ECS Tuning | ||||
| 10 | Vite esagonale per lamiera | ST4,8X19-C-Z2 | 2 | 09/1989 | 07119916949 | $0.25 | Shop at ECS Tuning | |||
| 10 | Dado a cappello | M5 | 2 | 09/1989 | 51711934930 | $0.23 | Shop at ECS Tuning | |||
| 11 | Altoparlante | 4 OHM/15/25W | 2 | 09/1989 | 65131386059 | TERMINATO | Shop at ECS Tuning | |||
| 12 | Altoparlante sinistra | 4 OHM/15/25W | 1 | 09/1989 | 65131386111 | TERMINATO | Shop at ECS Tuning | |||
| 12 | Altoparlante destra | 4 OHM/15/25W | 1 | 09/1989 | 65131386112 | TERMINATO | Shop at ECS Tuning | |||
| 13 | Dado di scartamento | ST 4.8 | 4 | 09/1989 | 63121374075 | $0.23 | Shop at ECS Tuning | |||
| 14 | Vite esagonale per lamiera | ST4,8X19-C-Z2 | 4 | 09/1989 | 07119916949 | $0.25 | Shop at ECS Tuning | |||
| 15 | Vite lenticolare di lamiera | ST4,2X13-Z2 | 8 | 09/1989 | 07119907939 | $0.11 | Shop at ECS Tuning | |||
| 16 | Dado per lamiera | ST4,2-3-ZNS3 | 8 | 09/1989 | 07129904221 | $0.25 | Shop at ECS Tuning | |||
Note
- TERMINATO = Il ricambio è fuori produzione.
