Pezzi singoli sound system for BMW 3 Series E30 320i (1990)

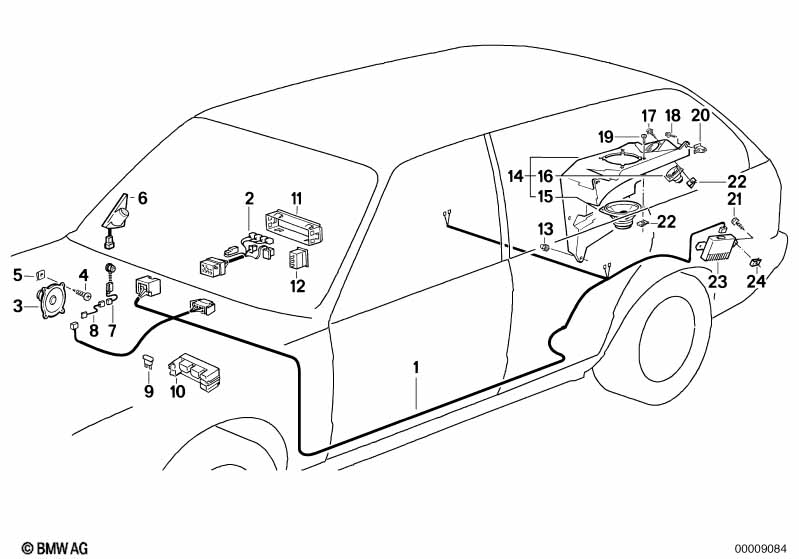

This Pezzi singoli sound system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.

Pezzi singoli sound system
No. Descrizione Supplemento Qtà  Da   Fino a  Codice Ricambio Prezzo Note
01 Serie di cavi SOUND SYSTEM 1 09/1989 61121394213 TERMINATO Shop at ECS Tuning
SOLO ADATTO PER
RADIO BAVARIA C ELECTRONIC
RADIO BAVARIA C EXCLUSIVE
02 Adattatore condotto p sistema hifi 4-KANAL 1 09/1989 65128350190 $56.15 TERMINATO Shop at ECS Tuning
SOLO ADATTO PER
RADIO BAVARIA ELECTRONIC CD
02 Condotto adattatore 4-KANAL 1 09/1989 65128350007 $57.17 TERMINATO Shop at ECS Tuning
SOLO ADATTO PER
RADIO BAVARIA C
RADIO BAVARIA C REVERSE
RADIO MEXICO ELECTRONIC CR SAFETY
02 Adattatore condotto p sistema hifi 2-KANAL 1 09/1989 65128350191 $56.15 TERMINATO Shop at ECS Tuning
03 Altoparlante 4 OHM/25/40W 2 09/1989 65131386546 $88.29 Shop at ECS Tuning
04 Vite lenticolare di lamiera ST4,2X16-ABW 6 09/1989 07119906749 $0.11 Shop at ECS Tuning
05 Dado di scartamento ST 4.8 WEISS 6 09/1989 63171367868 $0.60 Shop at ECS Tuning
06 Altoparlante sinistra SOUND SYSTEM 1 09/1989 65131377687 $70.68 Shop at ECS Tuning
06 Altoparlante destra SOUND SYSTEM 1 09/1989 65131377688 $70.68 Shop at ECS Tuning
07 Corredo di cavo porta anteriore SOUND SYSTEM 2 09/1989 61129058654 $66.12 TERMINATO Shop at ECS Tuning
08 Serie di cavi SOUND SYSTEM 2 09/1989 61121375798 $16.54 TERMINATO Shop at ECS Tuning
09 Fusibile beige 5A 1 09/1989 61131372523 Shop at ECS Tuning
09 Dispositivo di sicurezza 5A 1 09/1989 61131386626 $0.75 TERMINATO Shop at ECS Tuning
10 Scatola del connettore 1 09/1989 62111372218 $7.86 TERMINATO Shop at ECS Tuning
11 Telaio 1 09/1989 65121375737 $13.10 Shop at ECS Tuning
12 Regol.d.dissolv.incrociata c spina ronda HIFI/SOUND SYST 1 09/1989 65121379325 $44.65 Shop at ECS Tuning
13 Vite esagonale per lamiera ST4,8X19-C-Z2 2 09/1989 07119916949 $0.25 Shop at ECS Tuning
13 Dado a cappello M5 2 09/1989 51711934930 $0.23 Shop at ECS Tuning
14 Altoparlante sinistra SOUND SYSTEM 2 09/1989 65131386115 TERMINATO Shop at ECS Tuning
14 Altoparlante destra SOUND SYSTEM 2 09/1989 65131386116 TERMINATO Shop at ECS Tuning
15 Altoparlante SOUND SYSTEM 1 09/1989 65131386107 TERMINATO Shop at ECS Tuning
16 Altoparlante HIFI SYSTEM 1 09/1989 65131377772 $27.73 TERMINATO Shop at ECS Tuning
17 Vite lenticolare di lamiera ST4,2X13 4 09/1989 07119906748 $0.18 Shop at ECS Tuning
18 Vite per lamiera ST4,8X16 Z1 SW 4 09/1989 07119904181 $0.36 Shop at ECS Tuning
19 Vite lenticolare di lamiera ST4,2X13-Z2 8 09/1989 07119907939 $0.11 Shop at ECS Tuning
20 Dado di scartamento ST 4.8 4 09/1989 63121374075 $0.23 Shop at ECS Tuning
21 Vite esagonale per lamiera ST4,8X16-C-Z1 2 09/1989 07119916945 $0.18 Shop at ECS Tuning
21 Vite esagonale per lamiera ST4,8X16-C-Z1 2 09/1989 07119906265 TERMINATO Shop at ECS Tuning
22 Dado per lamiera ST4,2-3-ZNS3 X 09/1989 07129904221 $0.25 Shop at ECS Tuning
23 Amplificatore SOUND SYSTEM 1 09/1989 65121375983 $242.17 TERMINATO Shop at ECS Tuning
24 Dado per lamiera ST 4,8-4-ZNS3 2 09/1989 07129904224 $0.11 Shop at ECS Tuning
Note
  • TERMINATO = Il ricambio è fuori produzione.
