Pezzi singoli p porta post.hifi/top-hifi for BMW 5 Series E39 528i (1997)

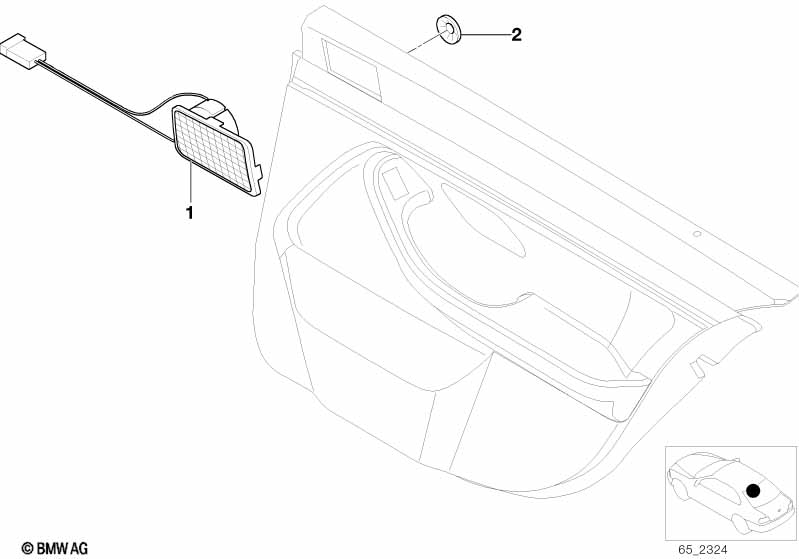

This Pezzi singoli p porta post.hifi/top-hifi technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Per veicoli con Sistema Altoparlanti HiFi o HiFi System Professional DSP |
S676A=Sì S677A=Sì |
||||||||
| 01 | Altoparlante toni medio-alti sinistra | SCHWARZ | 1 | 65138362541 | $64.43 | Shop at ECS Tuning | ||||
| 01 | Altoparlante toni medio-alti destra | SCHWARZ | 1 | 65138362542 | $64.43 | Shop at ECS Tuning | ||||
| 01 | Altoparlante toni medio-alti sinistra | MARINEBLAU | 1 | 65138362543 | $64.43 | TERMINATO | Shop at ECS Tuning | |||
| 01 | Altoparlante toni medio-alti destra | MARINEBLAU | 1 | 65138362544 | $64.43 | TERMINATO | Shop at ECS Tuning | |||
| 01 | Altoparlante toni medio-alti sinistra | SANDBEIGE | 1 | 65138362545 | $64.43 | Shop at ECS Tuning | ||||
| 01 | Altoparlante toni medio-alti destra | SANDBEIGE | 1 | 65138362546 | $64.43 | Shop at ECS Tuning | ||||
| 01 | Altoparlante toni medio-alti sinistra | DUNKELGRUEN | 1 | 65138362547 | $64.43 | TERMINATO | Shop at ECS Tuning | |||
| 01 | Altoparlante toni medio-alti destra | DUNKELGRUEN | 1 | 65138362548 | $64.43 | TERMINATO | Shop at ECS Tuning | |||
| 02 | Dado a molla | 6 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
Note
- TERMINATO = Il ricambio è fuori produzione.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Pezzi singoli p porta post.hifi/top-hifi?
- This technical diagram illustrates the Pezzi singoli p porta post.hifi/top-hifi within the Audio, Navigazione, Sistema elettron. group for the 5 Series E39 528i produced during 1997. It provides a detailed exploded view of the components, identifying key parts such as the Altoparlante toni medio-alti sinistra (Part #65138362541).
- Which models use the hardware listed in this Pezzi singoli p porta post.hifi/top-hifi?
- The hardware and components featured in the Pezzi singoli p porta post.hifi/top-hifi are specific to the 5 Series E39 528i produced during 1997. These technical specifications ensure that parts like the Altoparlante toni medio-alti sinistra (65138362541) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pezzi singoli p porta post.hifi/top-hifi assembly?
- Each item in the Pezzi singoli p porta post.hifi/top-hifi corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Altoparlante toni medio-alti sinistra by locating its position on the schematic, which then links to the official BMW part number 65138362541 for the Audio, Navigazione, Sistema elettron. section.
