Radio Boost CD for BMW MINI R50 Cooper (2000)

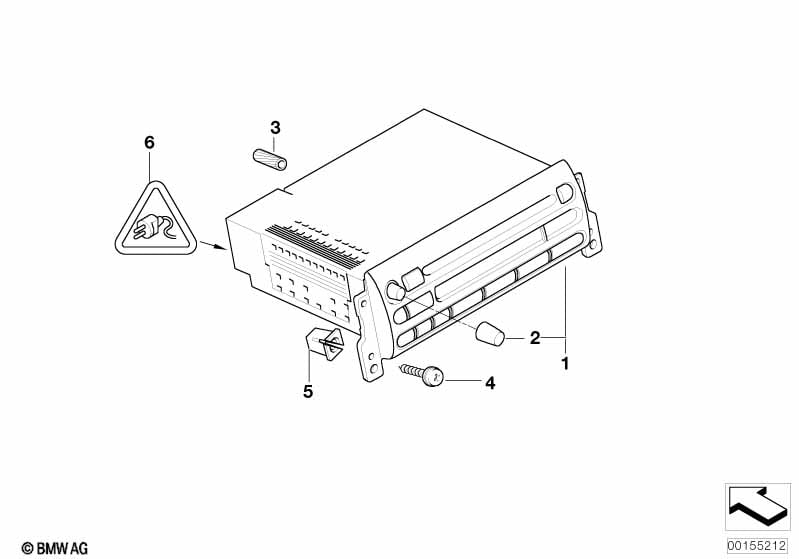

This Radio Boost CD technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN Radio Boost CD | 1 | 09/2003 | 65106927905 | $659.06 | TERMINATO | Shop at ECS Tuning | |||
| Per veicoli con Versione per japan o Radio Oceania |
L807A=Sì S825A=Sì |
|||||||||
| 01 | RP REMAN Radio Boost CD | 1 | 09/2006 | 65126977698 | $659.06 | TERMINATO | Shop at ECS Tuning | |||
| Per veicoli con Sistema di navigazione Professional e Sistema HiFi Harman Kardon e Preparazione p montag.telefono universal |
S609A=Sì S674A=Sì S640A=Sì |
|||||||||
| 01 | RP REMAN Radio Boost CD | 1 | 09/2003 | 65106927905 | $659.06 | TERMINATO | Shop at ECS Tuning | |||
| Per veicoli con Sistema di navigazione Professional e Sistema HiFi Harman Kardon e Preparazione p montag.telefono universal |
S609A=Sì S674A=Sì S640A=Non |
|||||||||
| 01 | RP REMAN Radio Boost CD | 1 | 09/2003 | 65106927905 | $659.06 | TERMINATO | Shop at ECS Tuning | |||
| Per veicoli con Sistema di navigazione Professional e Sistema HiFi Harman Kardon e Preparazione p montag.telefono universal |
S609A=Non S674A=Sì S640A=Sì |
|||||||||
| 01 | RP REMAN Radio Boost CD | 1 | 09/2003 | 65106927905 | $659.06 | TERMINATO | Shop at ECS Tuning | |||
| 02 | Bottone | 1 | 07/2004 | 65129127000 | $9.11 | Shop at ECS Tuning | ||||
| 03 | Spina di fermo radio | 1 | 65106913427 | $1.00 | Shop at ECS Tuning | |||||
| 04 | Vite lenticolare di lamiera | ST4,2X19 | 4 | 10/2006 | 51431874616 | $0.39 | Shop at ECS Tuning | |||
| 04 | Vite testa cil. | K40X20-ZNFE SW | 4 | 07147119149 | $0.49 | Shop at ECS Tuning | ||||
| 05 | Dado di scartamento | 2 | 46631453058 | $0.75 | Shop at ECS Tuning | |||||
| 06 | Scatola del connettore | 16 POL. | 1 | 61138384580 | $3.78 | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Contatto a boccola MQS con cavo | 0,2- 0,5 QMM | 8 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contatto a boccola MQS con cavo | 0,5-0,75 MM² AG | 8 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Kit di rip. scatola boccole | 12 POL. | 1 | 61132471240 | Shop at ECS Tuning | |||||
| -- | Involucro presa di corrente | 8 POL. | 2 | 61136905788 | $1.52 | Shop at ECS Tuning | ||||
| -- | Contatto ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 24 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Dispositivo di sicurezza | 1 | 61138384567 | $0.92 | Shop at ECS Tuning | |||||
| -- | Cappuccio copertura | 12 POL. | 1 | 61138387206 | $2.07 | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
