Pezzi singoli antenna-diversity for BMW MINI R50 Cooper (2000)

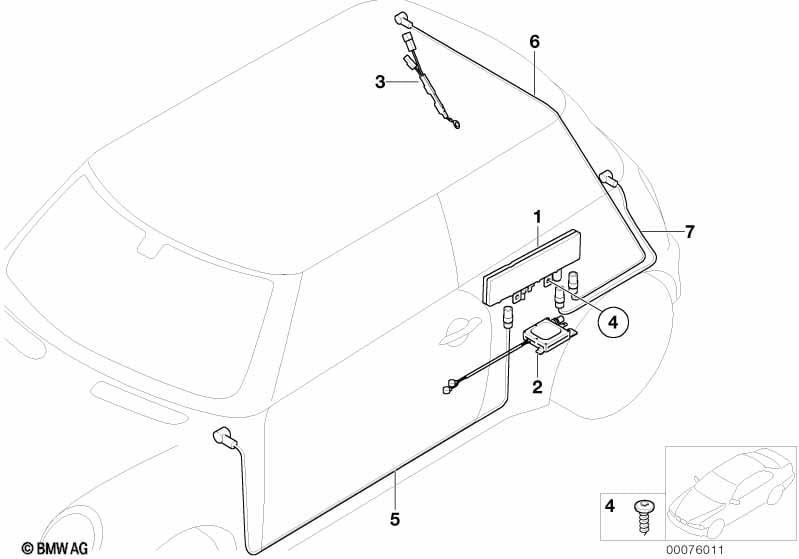

This Pezzi singoli antenna-diversity technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Per veicoli con Sistema di navigazione Professional o Preparazione p montag.telefono universal |
S609A=Sì S640A=Sì |
|||||||||
| 01 | Amplificatore antenna Diversity | 1 | 07/2004 | 65206918376 | TERMINATO | Shop at ECS Tuning | ||||
| Per veicoli con Versione per japan e Sistema di navigazione Professional e Preparazione p montag.telefono universal |
L807A=Sì S609A=Sì S640A=Sì |
|||||||||
| 01 | Amplificatore antenna Diversity | 1 | 07/2004 | 65206918372 | $139.10 | TERMINATO | Shop at ECS Tuning | |||
| Per veicoli con Versione per japan e Sistema di navigazione Professional e Preparazione p montag.telefono universal |
L807A=Sì S609A=Sì S640A=Non |
|||||||||
| 01 | Amplificatore antenna Diversity | 1 | 07/2004 | 65206918372 | $139.10 | TERMINATO | Shop at ECS Tuning | |||
| Per veicoli con Versione per japan e Sistema di navigazione Professional e Preparazione p montag.telefono universal |
L807A=Sì S609A=Non S640A=Sì |
|||||||||
| 01 | Amplificatore antenna Diversity | 1 | 07/2004 | 65206918372 | $139.10 | TERMINATO | Shop at ECS Tuning | |||
| 04 | Vite per lamiera | ISA M5X12 | 5 | 07/2004 | 07149158177 | $0.25 | Shop at ECS Tuning | |||
| 05 | Cavo dell'antenna Diversity | 1 | 07/2004 | 61126921231 | $70.20 | Shop at ECS Tuning | ||||
| 06 | Cavo dell'antenna Diversity | 1 | 07/2004 | 61126921232 | $39.95 | Shop at ECS Tuning | ||||
| 07 | Cavo dell'antenna Diversity | 1 | 07/2004 | 61126921233 | $70.20 | TERMINATO | Shop at ECS Tuning | |||
Note
- TERMINATO = Il ricambio è fuori produzione.
