sistemi antifurto for BMW MINI Cabrio R52 Cooper (2002)

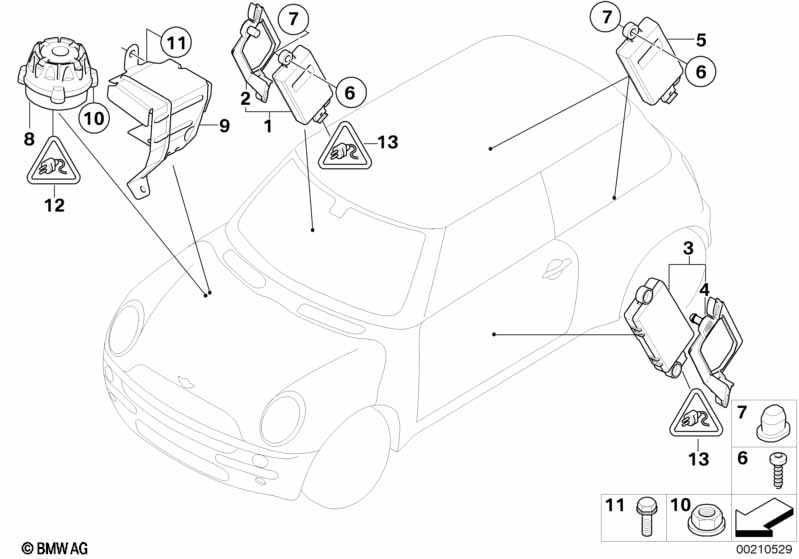

This sistemi antifurto technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R52 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | DWA-Dispositivo d'allarme porta destra | 1 | 65756951664 | $102.94 | Shop at ECS Tuning | |||||
| 02 | Piastra di sostegno destra | 1 | 65756949596 | Shop at ECS Tuning | ||||||
| 03 | DWA-Dispositivo d'allarme porta sinistra | 1 | 65756951663 | $102.94 | Shop at ECS Tuning | |||||
| 04 | Piastra di sostegno sinistra | 1 | 65756949595 | TERMINATO | Shop at ECS Tuning | |||||
| 05 | DWA-Dispositivo d'allarme porta poster. | 2 | 65756949229 | $87.60 | Shop at ECS Tuning | |||||
| 06 | Vite testa cil. | TS 5X16 | 8 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| 07 | Dado di scartamento | 8 | 07130672440 | $0.64 | Shop at ECS Tuning | |||||
| 08 | Tilt-Sirene c indicatore d'inclinazione | 1 | 65756970943 | $138.27 | Shop at ECS Tuning | |||||
| 09 | Sostegno DWA | 1 | 61356930052 | $15.23 | TERMINATO | Shop at ECS Tuning | ||||
| 10 | Dado esagonale | 1 | 03/2007 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 10 | Dado esagonale | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Vite Esagonale con Rondella | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Involucro presa corr. univ.senza codice | 3 POL. | 1 | 07/2008 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| solo in collegamento con | ||||||||||
| -- | Contatto a boccola MQS ELA con cavo | 0,5-0,75 MM² AG | X | 07/2008 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contatto a boccola MQS ELA con cavo | 0,35-0,5 MM² AG | X | 07/2008 | 61130056961 | Shop at ECS Tuning | ||||
| 12 | Kit di rip. scatola boccole | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| solo in collegamento con | ||||||||||
| -- | Contatto a boccola MQS ELA con cavo | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contatto a boccola MQS ELA con cavo | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 13 | Involucro presa corr. univ.senza codice | 4 POL. | 1 | 07/2008 | 61138380696 | $0.93 | Shop at ECS Tuning | |||
| solo in collegamento con | ||||||||||
| -- | Contatto boccola MQS | 0,5-0.75 MM²/SN | 1 | 07/2008 | 61131393724 | $0.28 | Shop at ECS Tuning | |||
| 13 | Kit di rip. scatola boccole | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| solo in collegamento con | ||||||||||
| -- | Contatto boccola MQS | 0,5-0.75 MM²/SN | 1 | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
