Radio BMW Business CD for BMW 1 Series F20 118d (2014)

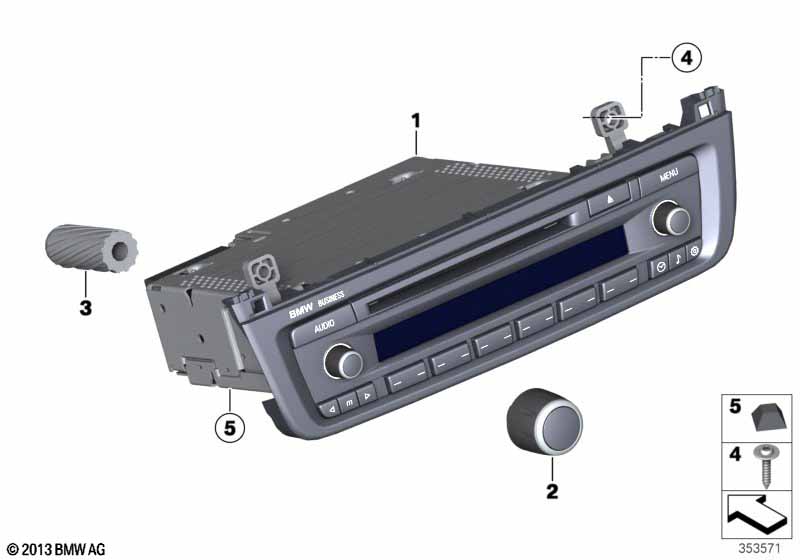

This Radio BMW Business CD technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attenzione! Controllare sull'apparecchio radio o sulla vettura, se è già montata l'autoradio della misura PuMa 50775160-07. Per veicoli con Radio BMW Professional |
S663A=Non |
||||||||
| 01 | RP REMAN Radio BMW Business CD | 1 | 07/2014 | 65129262045 | TERMINATO | Shop at ECS Tuning | ||||
| 01 | Radio BMW Business CD | 1 | 07/2014 | 65129332076 | Shop at ECS Tuning | |||||
| 02 | Manopola da ruotare | CHROM | 2 | 03/2015 | 65129231059 | Shop at ECS Tuning | ||||
| 03 | Spina di fermo radio | 1 | 03/2015 | 65128370535 | $0.94 | Shop at ECS Tuning | ||||
| 04 | Vite a testa bombata con rond.di spess. | DELTA PT4X20 | 2 | 03/2015 | 07149185673 | Shop at ECS Tuning | ||||
| 05 | Tampone | 2 | 03/2015 | 51318236877 | $0.58 | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
