Serie utensili for BMW 3 Series E30 325i (1985)

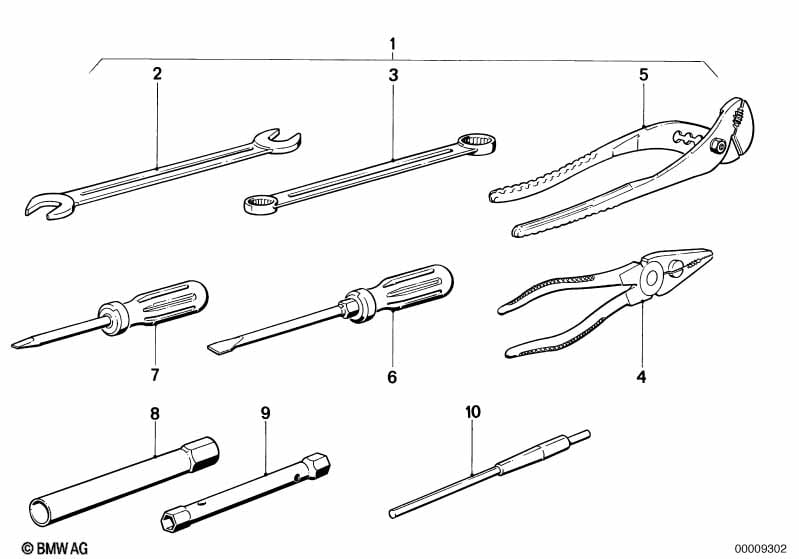

This Serie utensili technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Serie utensili | 1 | 71111115329 | $166.29 | Shop at ECS Tuning | |||||
| 02 | Chiave doppia | 17-19 | 1 | 01/1988 | 71111103080 | $13.52 | Shop at ECS Tuning | |||
| 02 | Chiave doppia | 17X19 | 1 | 01/1988 | 71113909780 | Shop at ECS Tuning | ||||
| 02 | Chiave doppia | 10-11 | 1 | 71111103078 | $13.52 | TERMINATO | Shop at ECS Tuning | |||
| 02 | Chiave doppia | 12-13 | 1 | 71111103079 | $13.52 | Shop at ECS Tuning | ||||
| 02 | Chiave fissa doppia | 8X10 | 1 | 71111126208 | $13.52 | Shop at ECS Tuning | ||||
| 02 | Chiave doppia | 8-10 | 1 | 71113909778 | Shop at ECS Tuning | |||||
| 02 | Chiave doppia | 12-13 | 1 | 71113909779 | Shop at ECS Tuning | |||||
| 03 | Chiave ad anello doppio | 8-10 | 1 | 71111103081 | $13.52 | TERMINATO | Shop at ECS Tuning | |||
| 03 | Chiave ad anello doppio | 12-13 | 1 | 71111103082 | $13.52 | TERMINATO | Shop at ECS Tuning | |||
| 03 | Chiave ad anello doppio | 17-19 | 1 | 71111103099 | $12.82 | TERMINATO | Shop at ECS Tuning | |||
| 03 | Chiave ad anello doppio | 8-10 | 1 | 71113909781 | Shop at ECS Tuning | |||||
| 03 | Chiave ad anello doppio | 12-13 | 1 | 71113909782 | Shop at ECS Tuning | |||||
| 03 | Chiave ad anello doppio | 17-19 | 1 | 71113909783 | Shop at ECS Tuning | |||||
| 04 | Pinza universale | 1 | 71111103092 | $25.24 | TERMINATO | Shop at ECS Tuning | ||||
| 04 | Pinza universale | 1 | 71113909790 | Shop at ECS Tuning | ||||||
| 05 | Pinza pompa acqua | 1 | 71111103091 | $27.46 | Shop at ECS Tuning | |||||
| 05 | Pinza pompa acqua | 1 | 71113909831 | Shop at ECS Tuning | ||||||
| 05 | Pinza pompa acqua | 1 | 71113909832 | Shop at ECS Tuning | ||||||
| 06 | Cacciavite | 1 | 71111103190 | $15.47 | Shop at ECS Tuning | |||||
| 06 | Cacciavite | 1 | 71113909788 | Shop at ECS Tuning | ||||||
| 07 | Cacciavite | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 07 | Cacciavite | 1 | 71112902935 | Shop at ECS Tuning | ||||||
| 07 | Cacciavite | 1 | 71113909787 | Shop at ECS Tuning | ||||||
| 08 | Chiave per candele di accensione | SW21 | 1 | 71111179745 | $18.50 | Shop at ECS Tuning | ||||
| 08 | Chiave per candele di accensione | 1 | 71113909784 | Shop at ECS Tuning | ||||||
| 09 | Chiave per candele di accensione | SW16 | 1 | 71111181460 | $18.50 | Shop at ECS Tuning | ||||
| 09 | Chiave tubulare | 1 | 71113909785 | Shop at ECS Tuning | ||||||
| 10 | Perno | 1 | 71111103085 | $17.51 | Shop at ECS Tuning | |||||
| 10 | Perno | 1 | 71113909786 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
