Utensili di bordo/Cricco for BMW MINI R56 One (2008)

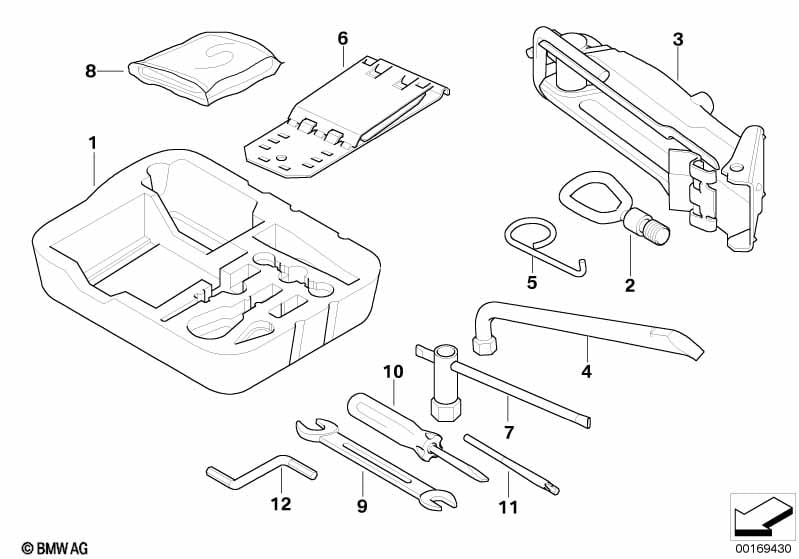

This Utensili di bordo/Cricco technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Per vetture con pneumatico "Runflat" | ||||||||||
| 01 | Vaschetta portaoggetti | 1 | 09/2009 | 71106778554 | $13.57 | Shop at ECS Tuning | ||||
| Per vetture con Mobility system |
||||||||||
| 01 | Appoggio set di mobilità | 1 | 71106795816 | Shop at ECS Tuning | ||||||
| Per veicoli con Ruota d'emergenza |
S300A=Sì |
|||||||||
| 01 | Vaschetta portaoggetti | 1 | 71106778555 | $12.68 | Shop at ECS Tuning | |||||
| 02 | Occhione di traino | 1 | 72157203519 | $23.87 | Shop at ECS Tuning | |||||
| 03 | Cricco | 1 | 71121501930 | $74.57 | Shop at ECS Tuning | |||||
| 04 | Chiave per ruote | 1 | 71126779731 | $14.56 | Shop at ECS Tuning | |||||
| 05 | Calotta coprimozzo estrattore | 1 | 71111507294 | $0.89 | Shop at ECS Tuning | |||||
| 06 | Calzatoia | 1 | 71121507292 | $11.50 | Shop at ECS Tuning | |||||
| 07 | Chiave a tubo p ruota d'emergenza | 1 | 71101507977 | $14.56 | Shop at ECS Tuning | |||||
| 08 | Guaina protettiva per il pneumatico | 1 | 71121182667 | $1.75 | Shop at ECS Tuning | |||||
| 09 | Chiave doppia | 10-13 | 1 | 71111182747 | $5.40 | Shop at ECS Tuning | ||||
| 10 | Cacciavite | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 11 | Inserto torx cacciavite | 1 | 71102756866 | $10.38 | Shop at ECS Tuning | |||||
| 12 | Inter.d'emerg.crist.elet.3tet.scor.elet. | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
