Predisposizione supporto posteriore for BMW 2 Series F45 Active Tourer 218d (2015)

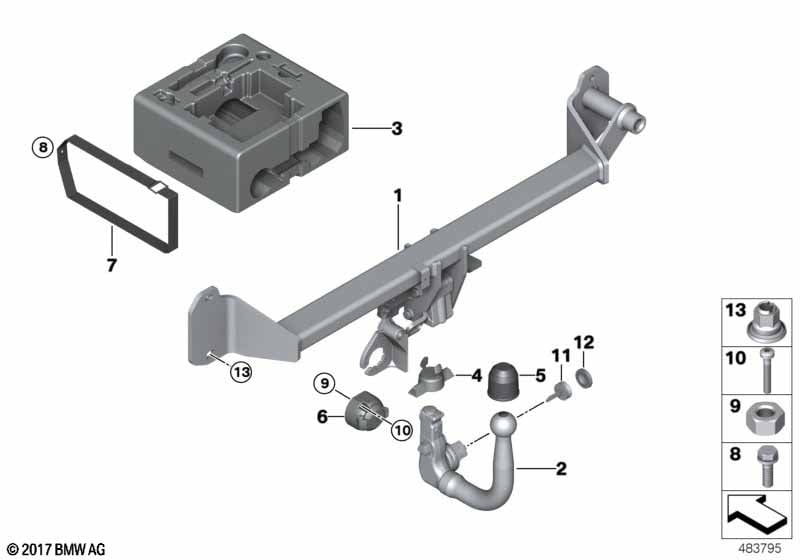

This Predisposizione supporto posteriore technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Per poter utilizzare la predisposizione per supporto posteriore presente SA3AR, occorre ordinare la testa sferica ed il ripiano specifico. Per veicoli con Predispos. portabagagli posteriore |
S3ARA=Sì |
||||||||
| 01 | Traversa predisp. supporto posteriore | 1 | 71606867319 | Shop at ECS Tuning | ||||||
| 02 | Testa sferica supporto posteriore | 1 | 71606870724 | Shop at ECS Tuning | ||||||
| 03 | Vaschetta portaoggetti | 1 | 71606877572 | Shop at ECS Tuning | ||||||
| 04 | Tappo di chiusura | 1 | 51129478015 | Shop at ECS Tuning | ||||||
| 05 | Cappellotto di protez.p testa sferica | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 06 | Presa a spina | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 07 | Nastro a strappo | 1 | 71106862422 | Shop at ECS Tuning | ||||||
| 08 | Vite Esagonale con Rondella | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Dado esagonale | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 10 | Vite a testa piana | M5 X 35 | 1 | 07119904582 | Shop at ECS Tuning | |||||
| 11 | Chiave (Code) | 1 | 71606775871 | Shop at ECS Tuning | ||||||
| 12 | Cappuccio copertura | 1 | 71606873893 | Shop at ECS Tuning | ||||||
| 13 | Dado esagonale | M12X1,5 | 4 | 71606795381 | Shop at ECS Tuning | |||||
