Pezzi singoli p voice input system for BMW 5 Series E39 528i (2000)

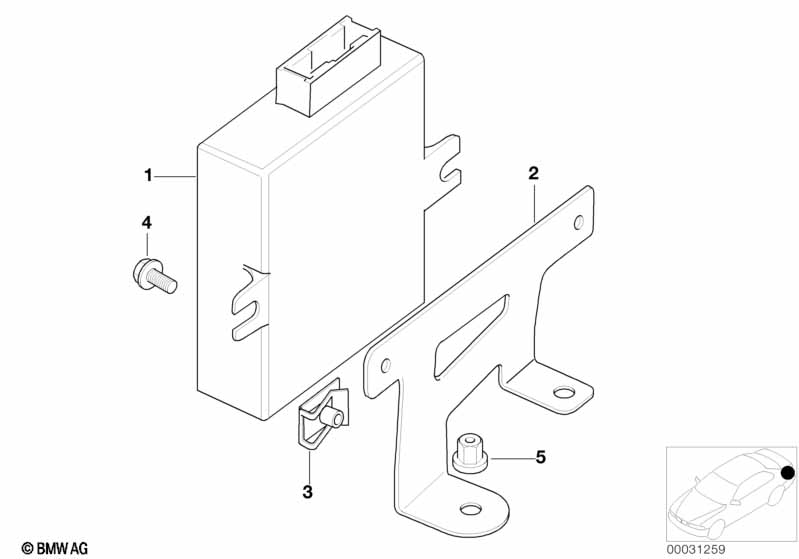

This Pezzi singoli p voice input system technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | App.comando, sist.di immissione vocale | US | 1 | 84416915049 | $831.69 | Shop at ECS Tuning | ||||
| SOLO ADATTO PER SISTEMA HIFI SOLO ADATTO PER SISTEMA TOP HIFI |
||||||||||
| 02 | Sostegno,app.comando voice input system | 1 | 84138384865 | $19.42 | TERMINATO | Shop at ECS Tuning | ||||
| Per veicoli con Sistema di navigazione Professional |
S609A=Sì |
|||||||||
| 02 | Sostegno,app.comando voice input system | 1 | 84138384866 | $19.11 | TERMINATO | Shop at ECS Tuning | ||||
| 03 | Dado per lamiera | M5 | 2 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 04 | Vite esagonale | M5X14 | 3 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Dado a cappello | M5 | 2 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Pezzi singoli p voice input system?
- This technical diagram illustrates the Pezzi singoli p voice input system within the Sistemi di communicazione group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the App.comando, sist.di immissione vocale (Part #84416915049).
- Which models use the hardware listed in this Pezzi singoli p voice input system?
- The hardware and components featured in the Pezzi singoli p voice input system are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the App.comando, sist.di immissione vocale (84416915049) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pezzi singoli p voice input system assembly?
- Each item in the Pezzi singoli p voice input system corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the App.comando, sist.di immissione vocale by locating its position on the schematic, which then links to the official BMW part number 84416915049 for the Sistemi di communicazione section.
