Telematic Communication Box for BMW 2 Series F23 220d (2017)

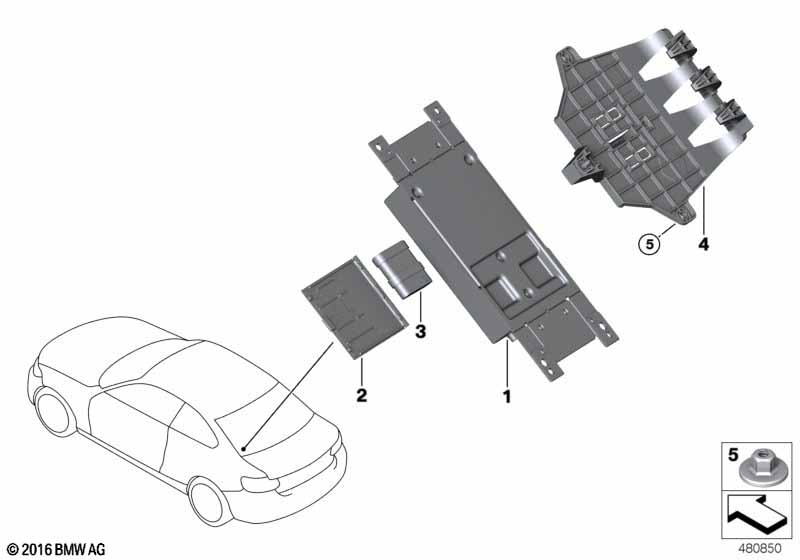

This Telematic Communication Box technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attenzione! L'accumulatore non è componente della centralina telematica. Se necessario, deve essere ordinato separatamente! L'ordinazione ed il montaggio di una centralina telematica codificata disattiva la scheda SIM al momento montata. I servizi ConnectedDrive e Teleservice possono essere quindi espletati solo più con la centralina nuova. La centralina ordinata non funziona in altri veicoli, ma solo in questo! Vedere intervento PuMA 62720112 |
|||||||||
| Per veicoli con Sistema di navigazione Business e Sistema di navigazione Professional e Radio BMW Professional e Teleservices |
S606A=Non S609A=Non S663A=Non S6AEA=Sì |
|||||||||
| 01 | Telematic Communication Box | TPL ECE | 1 | 07/2017 | 84109342080 | Shop at ECS Tuning | ||||
| 02 | Coperchio | TPL | 1 | 07/2017 | 84109304009 | Shop at ECS Tuning | ||||
| 03 | Accumulatore | TPL/TCB | 1 | 07/2017 | 84109297787 | Shop at ECS Tuning | ||||
| 04 | Supporto piattaforma telematica | 1 | 07/2017 | 84109292405 | Shop at ECS Tuning | |||||
| 05 | Dado in plastica con rondella | D=22MM | 1 | 07/2017 | 07147169847 | $0.36 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F23 220d Telematic Communication Box?
- This technical diagram illustrates the Telematic Communication Box within the Sistemi di communicazione group for the 2 Series F23 220d produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Telematic Communication Box (Part #84109342080).
- Which models use the hardware listed in this Telematic Communication Box?
- The hardware and components featured in the Telematic Communication Box are specific to the 2 Series F23 220d produced during 2017. These technical specifications ensure that parts like the Telematic Communication Box (84109342080) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Telematic Communication Box assembly?
- Each item in the Telematic Communication Box corresponds to the numbered list below the illustration. For the 2 Series F23 220d, you can identify the Telematic Communication Box by locating its position on the schematic, which then links to the official BMW part number 84109342080 for the Sistemi di communicazione section.
