Padiglione Alcantara Individual for BMW 5 Series F10 528i (2011)

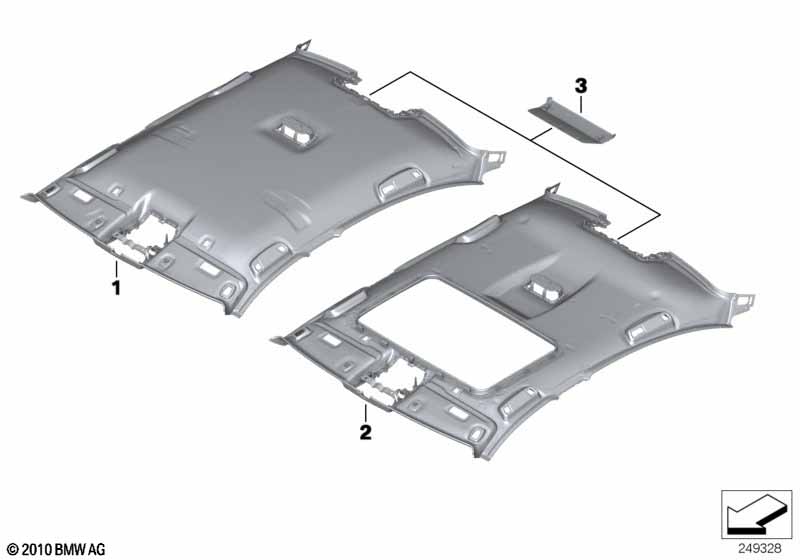

This Padiglione Alcantara Individual technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Nelle vetture Individual vengono montati anche parti di serie. Accertare in precedenza che il ricambio richiesto non sia un componente di serie. --------------------------- Per veicoli con Richiesta speciale di equipaggiamento o Padiglione Indi. Alcantara |
S940A=Sì SXD5A=Sì |
||||||||
| 01 | Padiglione sagomato in Alcantara | CHAMPAGNER | 1 | 03/2011 | 51447976043 | NoS | Shop at ECS Tuning | |||
| 01 | Padiglione sagomato in Alcantara | PLATIN | 1 | 03/2011 | 51447976044 | NoS | Shop at ECS Tuning | |||
| 01 | Padiglione sagomato in Alcantara | SEIDENGRAU | 1 | 03/2011 | 51447976045 | NoS | Shop at ECS Tuning | |||
| Per veicoli con Tetto in vetro el. |
S403A=Sì |
|||||||||
| 02 | Padiglione sag. tetto apribile Alcantara | CHAMPAGNER | 1 | 03/2011 | 51447976049 | NoS | Shop at ECS Tuning | |||
| 02 | Padiglione sag. tetto apribile Alcantara | PLATIN | 1 | 03/2011 | 51447976050 | NoS | Shop at ECS Tuning | |||
| 02 | Padiglione sag. tetto apribile Alcantara | SEIDENGRAU | 1 | 03/2011 | 51447976051 | NoS | Shop at ECS Tuning | |||
| 03 | Copertura luce arresto in Alcantara | CHAMPAGNER | 1 | 03/2011 | 51447976058 | NoS | Shop at ECS Tuning | |||
| 03 | Copertura luce arresto in Alcantara | PLATIN | 1 | 03/2011 | 51447976059 | NoS | Shop at ECS Tuning | |||
| 03 | Copertura luce arresto in Alcantara | SEIDENGRAU | 1 | 03/2011 | 51447976060 | NoS | Shop at ECS Tuning | |||
Note
- NoS = No Stock (Componente non pres. nel magazzino cent.)
