Parte mobile plan. portastr. Individual for BMW 8 Series G14 Cabrio 840dX (2023)

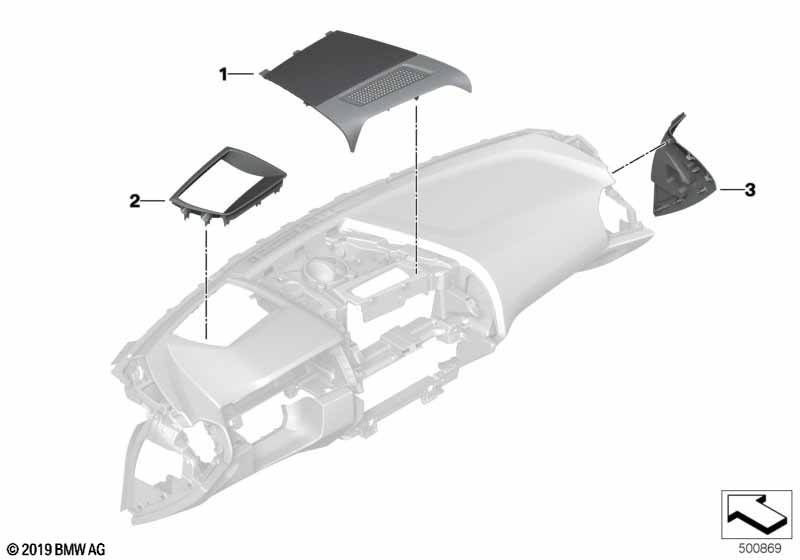

This Parte mobile plan. portastr. Individual technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Cabrio 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ------------------------------------- Attenzione ! Pezzi di serie ou montaggio success. non possibile via questo no. di ordinazione. . Il fatto che i veicoli individuali sono equipaggiati anche con pezzi di serie, bisogna mettersi al sicuro anzitutto che il pezzo di ricambio desiderato non è un pezzo di serie. ---------------------------------------- Indicare nell'ordinazione: . Pezzo di ricambio per veicolo individuale: - no. di ricambio - no. die concessionario - no. die telaio . Montaggio success. di un pezzo di ricambio individuale: - no. di ricambio - no. di concessaionario - no. di telaio ------------------------------------- |
|||||||||
| Per veicoli con Bowers & Wilkins High End Sound System e Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bian av/blu not" |
S6F1A=Non Z1XX=Sì ZBEI=Sì |
|||||||||
| 01 | Mascherina Centerspeaker | NACHTBLAU | 1 | 51457994879 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Bowers & Wilkins High End Sound System e Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bian av/blu not" |
S6F1A=Sì Z1XX=Sì ZBEI=Sì |
|||||||||
| 01 | Mascherina Centerspeaker | B&W NACHTBLAU | 1 | 65137994883 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Bowers & Wilkins High End Sound System e Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bi.avo./tartufo" |
S6F1A=Sì Z1XX=Sì ZBEJ=Sì |
|||||||||
| 01 | Mascherina Centerspeaker | B&W TARTUFO | 1 | 65137994884 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Bowers & Wilkins High End Sound System e Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bi.avo./tartufo" |
S6F1A=Non Z1XX=Sì ZBEJ=Sì |
|||||||||
| 01 | Mascherina Centerspeaker | TARTUFO | 1 | 51457994880 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bian av/blu not" |
Z1XX=Sì ZBEI=Sì |
|||||||||
| 02 | Mascherina Head-up Display | NACHTBLAU | 1 | 51457994887 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bi.avo./tartufo" |
Z1XX=Sì ZBEJ=Sì |
|||||||||
| 02 | Mascherina Head-up Display | TARTUFO | 1 | 51457994888 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bian av/blu not" |
Z1XX=Sì ZBEI=Sì |
|||||||||
| 03 | Mascherina plancia portastr. est. dx | NACHTBLAU | 1 | 51457996876 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bi.avo./tartufo" |
Z1XX=Sì ZBEJ=Sì |
|||||||||
| 03 | Mascherina plancia portastr. est. dx | TARTUFO | 1 | 51457996874 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Versione per japan e Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bian av/blu not" |
L807A=Non Z1XX=Sì ZBEI=Sì |
|||||||||
| 03 | Mascherina pl.portastr."Airbag off" sx | NACHTBLAU | 1 | 51457996879 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Versione per japan e Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bi.avo./tartufo" |
L807A=Non Z1XX=Sì ZBEJ=Sì |
|||||||||
| 03 | Mascherina pl.portastr."Airbag off" sx | TARTUFO | 1 | 51457996877 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Versione per japan e Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bi.avo./tartufo" |
L807A=Sì Z1XX=Sì ZBEJ=Sì |
|||||||||
| 03 | Mascherina plancia portastr. est. sx | TARTUFO | 1 | 51457996873 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Versione per japan e Imbottitura spec./senza indic. colore o Indi.pelle pieno fiore/"bian av/blu not" |
L807A=Sì Z1XX=Sì ZBEI=Sì |
|||||||||
| 03 | Mascherina plancia portastr. est. sx | NACHTBLAU | 1 | 51457996875 | NoS | Shop at ECS Tuning | ||||
Note
- NoS = No Stock (Componente non pres. nel magazzino cent.)
