Individual mascher.decor.consolle centr. for BMW 4 Series G82 M4 Coupé M4 (2024)

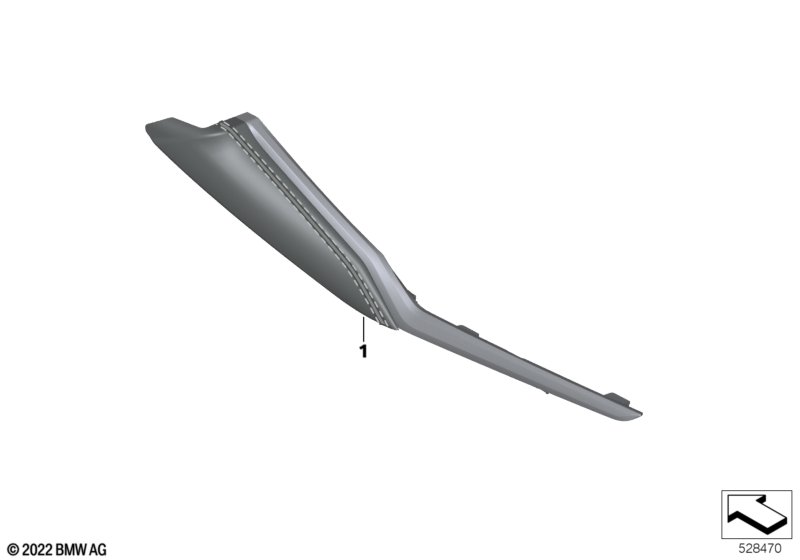

This Individual mascher.decor.consolle centr. technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Attenzione! Nelle vetture Individual vengono montati anche componenti di serie. Occorre assicurarsi in via preventiva che il ricambio necessario non sia un componenti di serie. Per veicoli con Imbottitura spec./senza indic. colore o Pelle Indi ampl./"blu fiordo nero" o Pelle pieno fiore ind./"blu Fjiord-nero" |
Z1XX=Sì ZAFV=Sì ZBFV=Sì |
||||||||
| 01 | Masc.copert.consolle centrale guidatore | BLAU/SCHWARZ | 1 | 51169502520 | NoS | Shop at ECS Tuning | ||||
| 01 | Masc.copert.consolle centrale pass.ant. | BLAU/SCHWARZ | 1 | 51169502526 | NoS | Shop at ECS Tuning | ||||
Note
- NoS = No Stock (Componente non pres. nel magazzino cent.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G82 M4 Coupé M4 Individual mascher.decor.consolle centr.?
- This technical diagram illustrates the Individual mascher.decor.consolle centr. within the Equipaggiamento individuale group for the 4 Series G82 M4 Coupé M4 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Masc.copert.consolle centrale guidatore (Part #51169502520).
- Which models use the hardware listed in this Individual mascher.decor.consolle centr.?
- The hardware and components featured in the Individual mascher.decor.consolle centr. are specific to the 4 Series G82 M4 Coupé M4 produced during 2024. These technical specifications ensure that parts like the Masc.copert.consolle centrale guidatore (51169502520) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual mascher.decor.consolle centr. assembly?
- Each item in the Individual mascher.decor.consolle centr. corresponds to the numbered list below the illustration. For the 4 Series G82 M4 Coupé M4, you can identify the Masc.copert.consolle centrale guidatore by locating its position on the schematic, which then links to the official BMW part number 51169502520 for the Equipaggiamento individuale section.
