アッパー アクチュエーター/タイミング for BMW 5 Series E39 525d (1999)

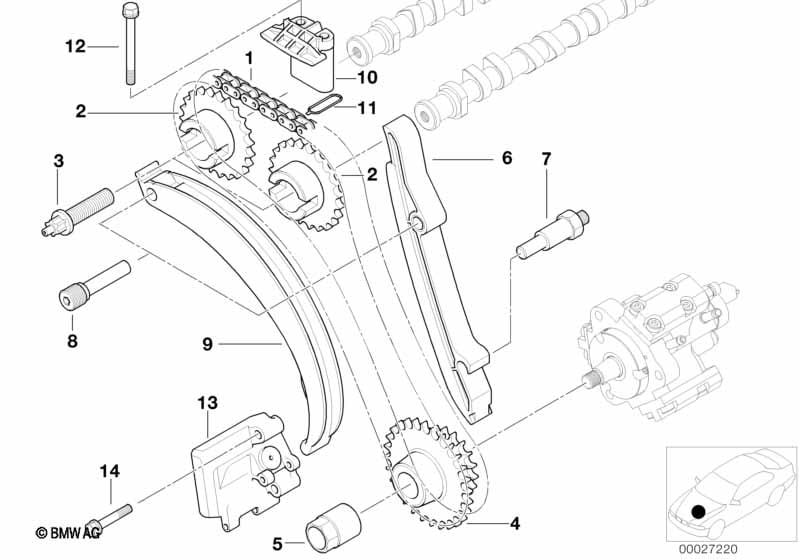

This アッパー アクチュエーター/タイミング technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.

アッパー アクチュエーター/タイミング
No. 記述 補足 数量  から   まで  パーツ番号 価格 備考
01 タイミング チェーン 1 11312248728 Shop at ECS Tuning
02 カムシャフト スプロケット 2 11312247052 Shop at ECS Tuning
03 トルクス ボルト M12X1,5X45 2 13527100470 Shop at ECS Tuning
04 高圧ポンプ スプロケット 1 13522247053 Shop at ECS Tuning
05 六角ナット カラー付き M14X1,5 1 13522247623 $2.37 Shop at ECS Tuning
06 ガイド レール 1 11312247333 Shop at ECS Tuning
07 ピン 1 11117787559 $5.14 Shop at ECS Tuning
08 ピン 2 11317806351 $5.35 Shop at ECS Tuning
09 テンション レール 1 11312247332 Shop at ECS Tuning
10 ガイド レール 1 11312247334 Shop at ECS Tuning
11 プロフィール シーリング 1 11312249978 Shop at ECS Tuning
12 六角ボルト ワッシャー付き M6X60-Z1 2 07119902062 $0.89 Shop at ECS Tuning
13 チェーン テンショナー 1 13522247644 Shop at ECS Tuning
14 六角ボルト ワッシャー付き M6X30-Z1-PHR 2 07119902064 $0.45 Shop at ECS Tuning
