冷却系-ウォーター ポンプ/サーモスタット for BMW 5 Series E39 525d (1999)

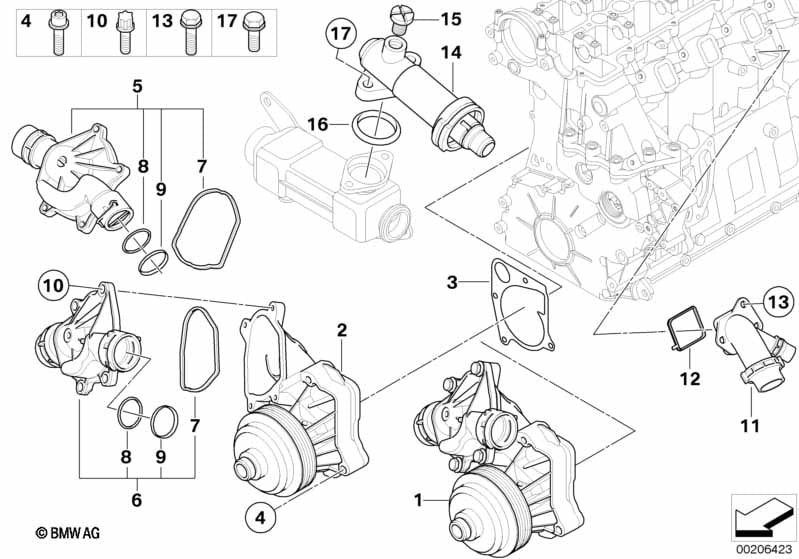

This 冷却系-ウォーター ポンプ/サーモスタット technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | 機械式クーラント ポンプ | 1 | 11517786192 | $192.79 | Shop at ECS Tuning | |||||
| 03 | メタル ガスケット | 1 | 11517793796 | $13.58 | Shop at ECS Tuning | |||||
| 04 | トルクス スクリュー カラー付き | M7X38 | 4 | 11517789351 | Shop at ECS Tuning | |||||
| 06 | サーモスタット 接続ピース付き | 1 | 11512354056 | $67.22 | Shop at ECS Tuning | |||||
| 07 | プロフィール シーリング | 1 | 11517787692 | $6.02 | Shop at ECS Tuning | |||||
| 08 | O リング | 1 | 11517788984 | $1.19 | Shop at ECS Tuning | |||||
| 09 | バックアップ リング | 1 | 11517788985 | $1.61 | Shop at ECS Tuning | |||||
| 10 | トルクス スクリュー | M6X20 | 4 | 11517514935 | Shop at ECS Tuning | |||||
| 11 | 接続パイプ | 1 | 11127806196 | $10.41 | Shop at ECS Tuning | |||||
| 12 | プロフィール シーリング | 1 | 11122247745 | $5.44 | Shop at ECS Tuning | |||||
| 13 | 六角ボルト ワッシャー付き | M6X25-ZNNIV SI | 3 | 07119905400 | $0.65 | Shop at ECS Tuning |
