キャブレーター for BMW R45-R65LS..78-85 R45

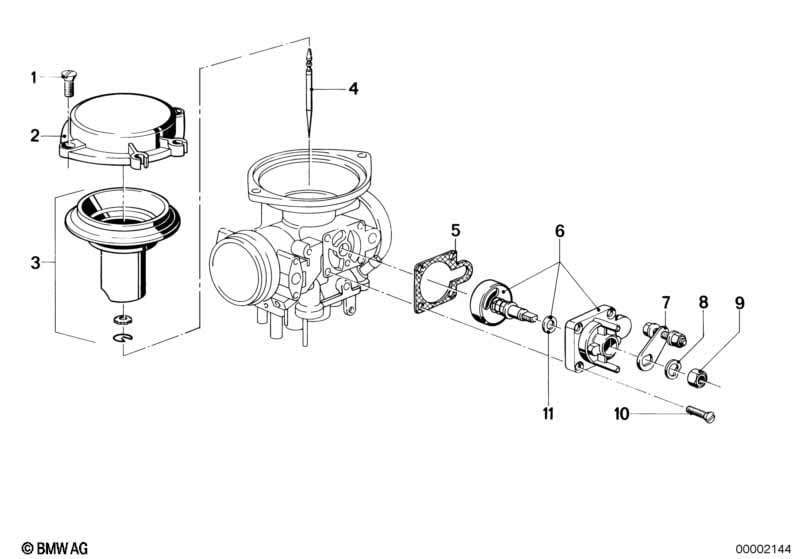

This キャブレーター technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | *FG 01/80 | |||||||||
| 01 | スクリュー | 4 | 13111337361 | $0.83 | Shop at ECS Tuning | |||||
| 02 | カバー | 2 | 13111335611 | $57.29 | Shop at ECS Tuning | |||||
| 03 | ピストン | 2 | 13111336878 | $94.86 | 生産終了 | Shop at ECS Tuning | ||||
| 04 | ニードル | 2 | 13111255840 | $8.94 | Shop at ECS Tuning | |||||
| 05 | シール | 2 | 13111256353 | $1.67 | Shop at ECS Tuning | |||||
| 06 | チョーク ボディ RH | 1 | 13111257815 | $56.11 | Shop at ECS Tuning | |||||
| 06 | チョーク ボディ LH | 1 | 13111257816 | $56.11 | Shop at ECS Tuning | |||||
| 07 | レバー | 2 | 13111335315 | $16.31 | Shop at ECS Tuning | |||||
| 08 | スプリング ワッシャー | 2 | 13111254759 | $1.48 | Shop at ECS Tuning | |||||
| 09 | ナット | 2 | 13111254760 | $0.83 | Shop at ECS Tuning | |||||
| 10 | スクリュー | 8 | 13111337367 | $1.48 | Shop at ECS Tuning | |||||
| 11 | シール リング | 2 | 13111257819 | $2.78 | Shop at ECS Tuning | |||||
備考
- 生産終了 = このパーツの製造は終了しています。在庫のみ
