3/2 ウェイ バルブ/フューエル ホース for BMW 3 Series E46 323Ci

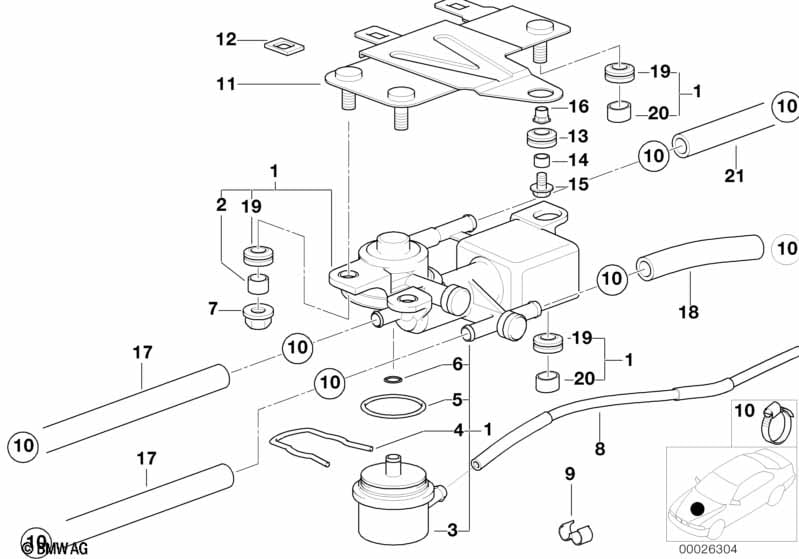

This 3/2 ウェイ バルブ/フューエル ホース technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 3/2 ウェイ バルブ | 1 | 13311438795 | $221.68 | +core | Shop at ECS Tuning | ||||
| 02 | ソケット | 2 | 13311438798 | $3.85 | 生産終了 | Shop at ECS Tuning | ||||
| 03 | プレッシャー コントローラー | 3,5BAR/PIERBURG | 1 | 13531729319 | $75.10 | Shop at ECS Tuning | ||||
| 04 | 固定スプリング | 1 | 07/1999 | 13531341694 | $4.84 | Shop at ECS Tuning | ||||
| 04 | クランプ ホルダー | 1 | 13321440346 | $1.82 | Shop at ECS Tuning | |||||
| 05 | O リング | 20X2,5 | 1 | 13531720251 | $4.38 | Shop at ECS Tuning | ||||
| 06 | O リング | 5X1,5 | 1 | 13531720252 | $3.75 | Shop at ECS Tuning | ||||
| 07 | 六角ナット ワッシャー付き | AM6-8-ZNNIV SI | 3 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 08 | バキューム ライン | 1 | 13531437282 | $7.78 | Shop at ECS Tuning | |||||
| 09 | ケーブル ホルダー | 1 | 12421284411 | $1.78 | Shop at ECS Tuning | |||||
| 10 | ホースクランプ | L12-15 | 8 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 11 | 3/2 ウェイ バルブ ホルダー | 1 | 13311435408 | $21.13 | 生産終了 | Shop at ECS Tuning | ||||
| 12 | キャップ | 2 | 13311436268 | $2.14 | 生産終了 | Shop at ECS Tuning | ||||
| 13 | スリーブ | 1 | 13311437539 | $2.06 | 生産終了 | Shop at ECS Tuning | ||||
| 14 | スリーブ | 1 | 13311437540 | $3.48 | Shop at ECS Tuning | |||||
| 15 | 六角ボルト ワッシャー付き | M6X25-U2 | 1 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 16 | ブラインド リベット ナット | M6 ZNNIV SI | 1 | 25167563407 | $0.39 | Shop at ECS Tuning | ||||
| 17 | フューエル ホース | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 18 | ホース マニフォールド | 1 | 13311744068 | $21.97 | Shop at ECS Tuning | |||||
| 19 | スリーブ | 3 | 13311438796 | $1.84 | 生産終了 | Shop at ECS Tuning | ||||
| 20 | ソケット | 1 | 13311438797 | $4.37 | 生産終了 | Shop at ECS Tuning | ||||
| 21 | フューエル ホース | D8X13 | 1 | 16131184890 | $18.92 | Shop at ECS Tuning |
備考
- +core = コア追加料金 (取り外したパーツを返却する必要があるかもしれません)
- 生産終了 = このパーツの製造は終了しています。在庫のみ
