インジェクションシステム/インジェクター for BMW 3 Series E46 318i (2003)

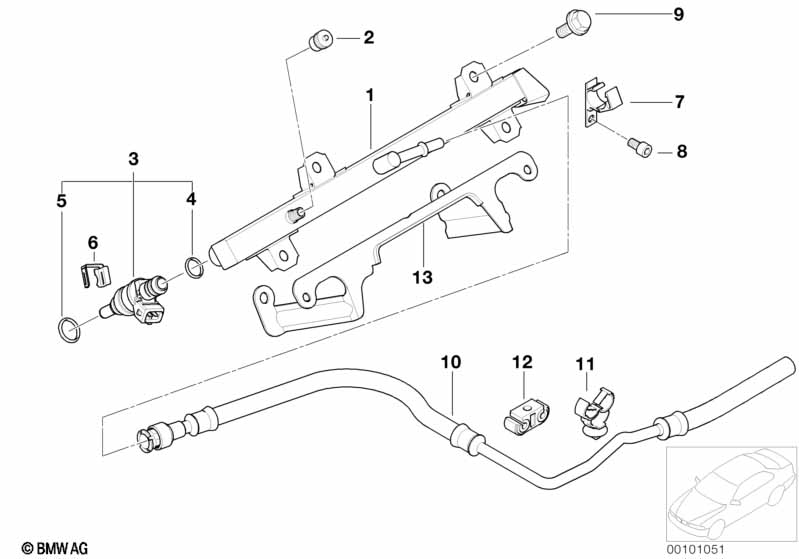

This インジェクションシステム/インジェクター technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | インジェクション パイプ | 1 | 06/2002 | 13537521634 | $73.10 | Shop at ECS Tuning | ||||
| 02 | キャップ | 1 | 13537506155 | $2.97 | Shop at ECS Tuning | |||||
| 03 | インジェクター | 4 | 13537506158 | $122.42 | Shop at ECS Tuning | |||||
| 04 | O リング | 7,52X3,52 | 4 | 13641437487 | $3.75 | Shop at ECS Tuning | ||||
| 05 | O リング grau | 7,52X3,52 | 4 | 13647509752 | $3.98 | Shop at ECS Tuning | ||||
| 06 | クリップ | 4 | 13537528539 | $0.58 | Shop at ECS Tuning | |||||
| 07 | パイプ サポート | 1 | 13311716049 | $1.13 | Shop at ECS Tuning | |||||
| 08 | フィリスター ヘッド スクリュー | M6X8 | 1 | 13537521635 | Shop at ECS Tuning | |||||
| 09 | 六角ボルト ワッシャー付き | M6X12-U1-8.8 | 2 | 08/2004 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 09 | 六角ボルト ワッシャー付き | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 10 | フューエル ライン | 1 | 06/2002 | 13537548991 | +core | Shop at ECS Tuning | ||||
| 11 | パイプ サポート | 1 | 61131379351 | $0.68 | Shop at ECS Tuning | |||||
| 13 | インジェクション パイプ ホルダー | 1 | 06/2002 | 13537519886 | Shop at ECS Tuning |
備考
- +core = コア追加料金 (取り外したパーツを返却する必要があるかもしれません)
