IN.マフラ/フィルターエレメント/HFM for BMW 5 Series F18 523Li (2009)

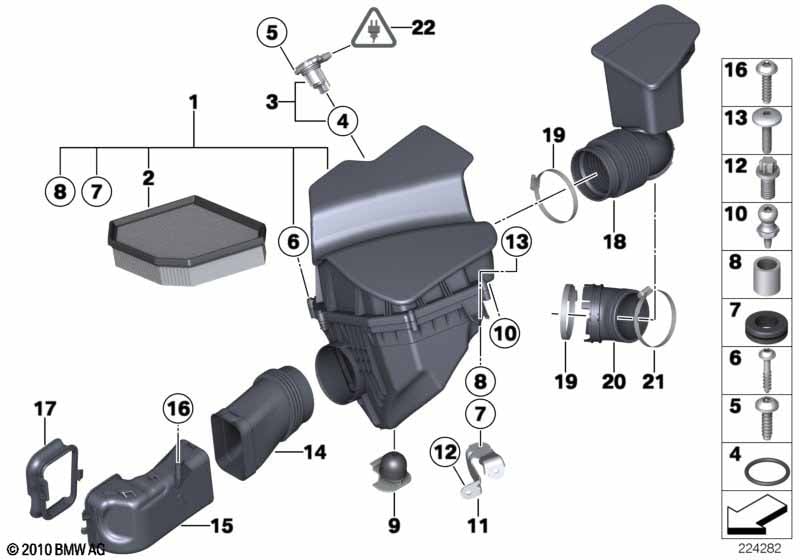

This IN.マフラ/フィルターエレメント/HFM technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 523Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | インテーク マフラー | 1 | 13717590593 | Shop at ECS Tuning | ||||||
| 02 | エア フィルター ボックス | 1 | 13717590597 | Shop at ECS Tuning | ||||||
| 03 | ホット フィルム エア マス メーター | 1 | 13627593624 | Shop at ECS Tuning | ||||||
| 04 | O リング | 1 | 13627532318 | $3.11 | Shop at ECS Tuning | |||||
| 05 | インナー トルクス ボルト | 5X18 | 2 | 13627531817 | $0.60 | Shop at ECS Tuning | ||||
| 06 | フィリスター ヘッド スクリュー | 5 | 13717545438 | $1.54 | Shop at ECS Tuning | |||||
| 07 | ラバー クリップ | 1 | 13711702508 | $3.34 | Shop at ECS Tuning | |||||
| 08 | スリーブ | 1 | 13717525711 | $3.95 | Shop at ECS Tuning | |||||
| 09 | ラバー クッション | 1 | 13717590596 | Shop at ECS Tuning | ||||||
| 10 | ボルト | 1 | 13717591536 | Shop at ECS Tuning | ||||||
| 11 | ブラケット リザーバー | 1 | 17137576092 | $8.60 | Shop at ECS Tuning | |||||
| 12 | ASA ボルト | M6X12 | 2 | 07129905030 | $1.53 | Shop at ECS Tuning | ||||
| 13 | フィリスター ヘッド スクリュー | 1 | 07147072901 | $0.53 | Shop at ECS Tuning | |||||
| 14 | エア ダクト | 1 | 13717590592 | Shop at ECS Tuning | ||||||
| 15 | エア ダクト | 5-8 | 1 | 13717577471 | $17.43 | Shop at ECS Tuning | ||||
| 16 | ボルト | 5X20 | 1 | 11617535849 | $0.75 | Shop at ECS Tuning | ||||
| 17 | インテーク サポート | 1 | 13717577469 | $5.50 | Shop at ECS Tuning | |||||
| 18 | ベローズ レゾネーター付き | 1 | 13717590595 | Shop at ECS Tuning | ||||||
| 19 | ホースクランプ | L83-90 | 2 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 20 | エア ダクト | 1 | 13717590594 | Shop at ECS Tuning | ||||||
| 21 | ホースクランプ | L=83-90 | 1 | 13717591535 | Shop at ECS Tuning |
