タンク ベント バルブ for BMW 7 Series F01 LCI 750iX (2011)

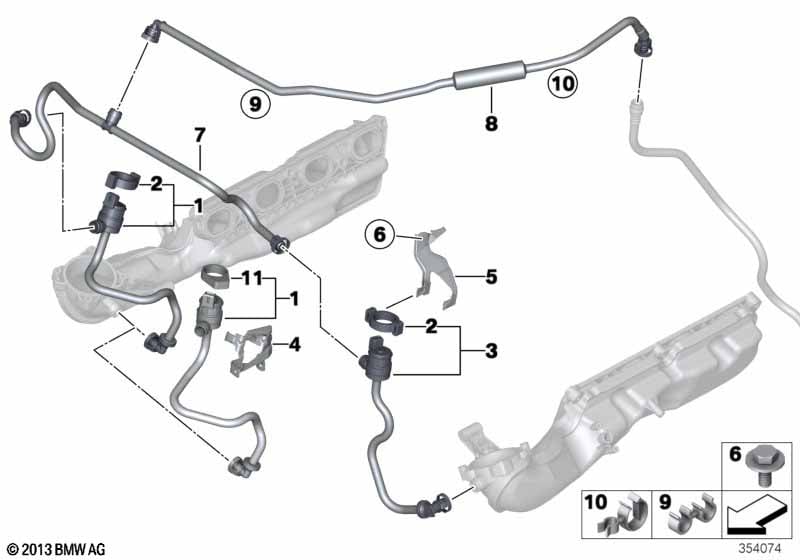

This タンク ベント バルブ technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 LCI 750iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | パイプ付エア抜きバルブ | 1-4 | 1 | 13907636159 | Shop at ECS Tuning | |||||
| 02 | ホルダー | 2 | 13907551261 | Shop at ECS Tuning | ||||||
| 03 | パイプ付エア抜きバルブ | 5-8 | 1 | 13907636160 | Shop at ECS Tuning | |||||
| 04 | タンク エア抜きバルブ ホルダー | 1-4 | 1 | 13907616719 | Shop at ECS Tuning | |||||
| 05 | タンク エア抜きバルブ ホルダー | 5-8 | 1 | 13907616724 | Shop at ECS Tuning | |||||
| 06 | 六角ボルト ワッシャー付き | M6X14U2-ZNNIVSI | 1 | 07119905952 | $0.91 | Shop at ECS Tuning | ||||
| 07 | 接続ライン | 1 | 13907636138 | Shop at ECS Tuning | ||||||
| 08 | フューエルタンク ベンチレーション ライン | 1 | 13907636134 | Shop at ECS Tuning | ||||||
| 09 | ホース ホルダー | 1 | 13311278232 | $1.73 | Shop at ECS Tuning | |||||
| 10 | ホース ホルダー | 1 | 13311274792 | $1.73 | Shop at ECS Tuning |
