エクスパンション タンク/ライン for BMW 3 Series E21 323i (1982)

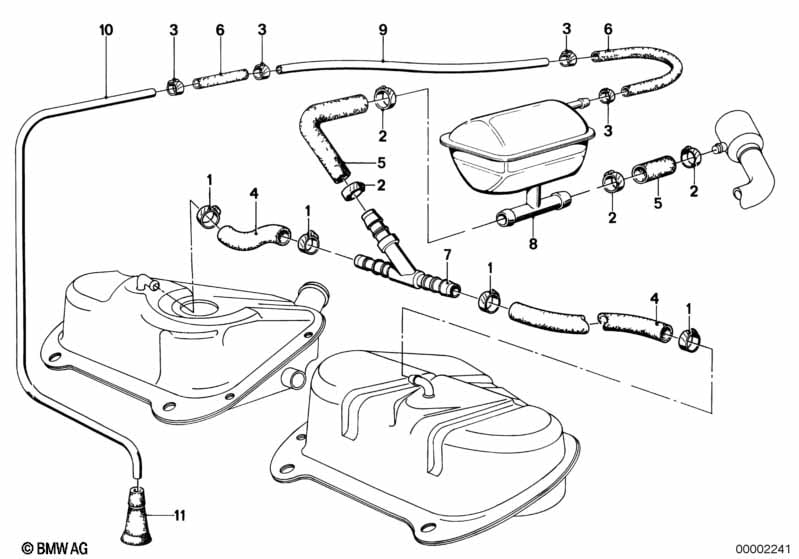

This エクスパンション タンク/ライン technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ホースクランプ | L15-19 | 4 | 08/1977 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 02 | ホースクランプ | L18-24 | 4 | 08/1977 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 03 | ホースクランプ | L=9-12 | 2 | 08/1977 | 07129952102 | $1.18 | Shop at ECS Tuning | |||
| 04 | フューエル ホース | 12X18 | X | 08/1977 | 16121176440 | $15.25 | Shop at ECS Tuning | |||
| 05 | ホース | 14X20X1340 | 1 | 08/1977 | 16121177553 | $34.54 | Shop at ECS Tuning | |||
| 06 | フューエル ホース | 6X11MM | X | 08/1977 | 13311272750 | $11.62 | Shop at ECS Tuning | |||
| 07 | ディストリビューター ピース | 1 | 08/1977 | 16121115537 | $1.52 | Shop at ECS Tuning | ||||
| 08 | リザーバー | 1 | 08/1977 | 16121117590 | $6.34 | Shop at ECS Tuning | ||||
| 09 | ベンチレーション ライン | 1 | 08/1977 | 16121152050 | $14.51 | 生産終了 | Shop at ECS Tuning | |||
| 10 | ベンチレーション ライン | 1 | 08/1977 | 16121152050 | $14.51 | 生産終了 | Shop at ECS Tuning | |||
| 11 | スリーブ | 1 | 08/1977 | 16121101014 | $1.21 | 生産終了 | Shop at ECS Tuning |
備考
- 生産終了 = このパーツの製造は終了しています。在庫のみ
