T/M 固定部/取付け部品 for BMW 7 Series F02 740Li

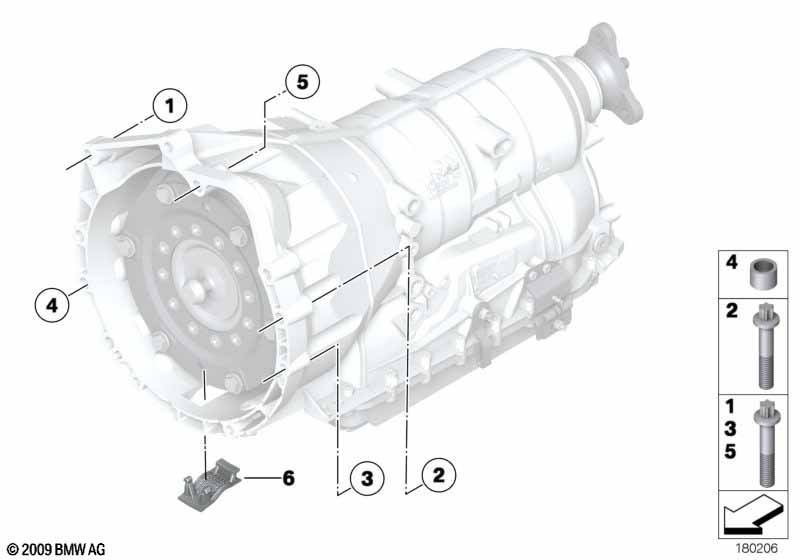

This T/M 固定部/取付け部品 technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 740Li. It includes part names, part numbers and all associated mounting hardware.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | トルクス ボルト | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | トルクス ボルト | M12X75 | 5 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 03 | ASA ボルト | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | ノック ピン | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | ASA ボルト | M10X85-8.8-ZNS3 | 1 | 07129903800 | $1.78 | Shop at ECS Tuning | ||||
| 06 | シーリング キャップ | 1 | 24147567139 | $10.60 | Shop at ECS Tuning |
