A/T A5S310Z for BMW 5 Series E34 525tds (1995)

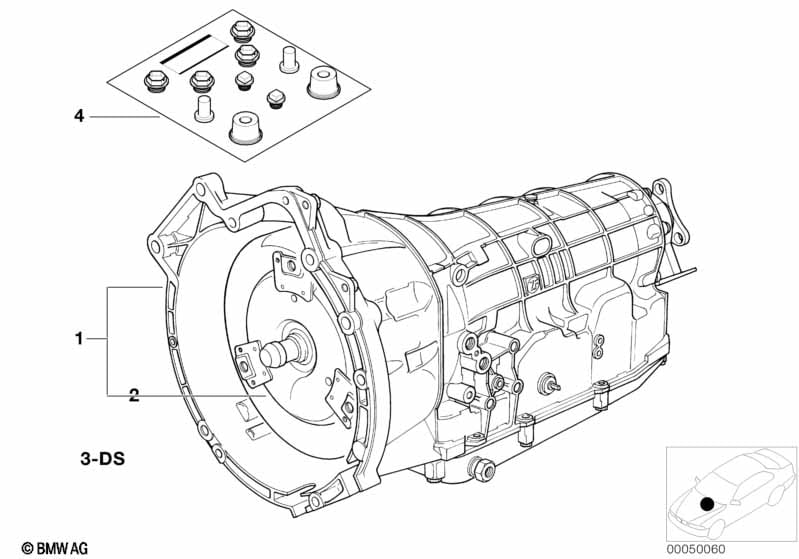

This A/T A5S310Z technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN オートマチック トランスミッション EH | A5S 310Z - ME | 1 | 09/1992 | 24001421134 | $4436.10 | 生産終了, +core | Shop at ECS Tuning | ||
| 02 | トルク コンバーター | P12 | 1 | 24401421086 | 生産終了, +core | Shop at ECS Tuning | ||||
| 03 | シーリング セット | A5S 310Z | 1 | 24271421013 | $267.09 | Shop at ECS Tuning | ||||
| 04 | セット、プラグ | 1 | 24107536090 | $8.90 | 生産終了 | Shop at ECS Tuning | ||||
| 04 | セット、プラグ | 1 | 24107604970 | Shop at ECS Tuning |
備考
- 生産終了 = このパーツの製造は終了しています。在庫のみ
- +core = コア追加料金 (取り外したパーツを返却する必要があるかもしれません)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525tds A/T A5S310Z?
- This technical diagram illustrates the A/T A5S310Z within the オートマチック トランスミッション group for the 5 Series E34 525tds produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the RP REMAN オートマチック トランスミッション EH (Part #24001421134).
- Which models use the hardware listed in this A/T A5S310Z?
- The hardware and components featured in the A/T A5S310Z are specific to the 5 Series E34 525tds produced during 1995. These technical specifications ensure that parts like the RP REMAN オートマチック トランスミッション EH (24001421134) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A/T A5S310Z assembly?
- Each item in the A/T A5S310Z corresponds to the numbered list below the illustration. For the 5 Series E34 525tds, you can identify the RP REMAN オートマチック トランスミッション EH by locating its position on the schematic, which then links to the official BMW part number 24001421134 for the オートマチック トランスミッション section.
