パワー ステアリング オイル ライン for BMW 3 Series E36 318i (1995)

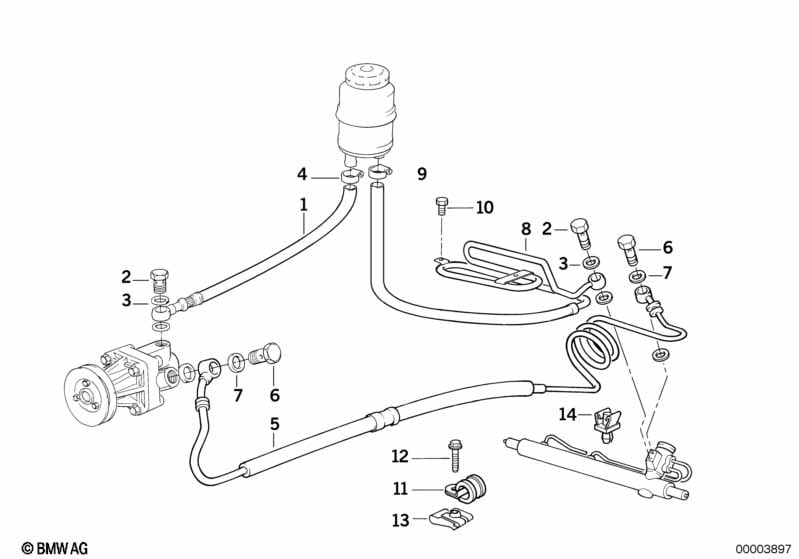

This パワー ステアリング オイル ライン technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.

パワー ステアリング オイル ライン
No. 記述 補足 数量  から   まで  パーツ番号 価格 備考
01 フィード ホース 1 01/1994 32411093116 $35.95 Shop at ECS Tuning
05 プレッシャー ホース 1 01/1994 32411141918 $200.87 生産終了 Shop at ECS Tuning
07 シール リング A14X20-CUSN 4 32411093596 $0.31 Shop at ECS Tuning
08 リターン ライン 冷却ループ付 1 01/1994 32411093247 $86.44 Shop at ECS Tuning
08 リターン ライン 冷却ループ付 1 11/1994 32411093247 $86.44 Shop at ECS Tuning
冷却ループは最早不要
09 ホースクランプ L15-19 1 07129952107 $0.93 Shop at ECS Tuning
10 六角ボルト ワッシャー付き M6X12-U1-8.8 1 07119904517 $0.36 Shop at ECS Tuning
備考
  • 生産終了 = このパーツの製造は終了しています。在庫のみ

See Also

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E36 318i パワー ステアリング オイル ライン?
This technical diagram illustrates the パワー ステアリング オイル ライン within the ステアリング / ホィール アライメント group for the 3 Series E36 318i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the フィード ホース (Part #32411093116).
Which models use the hardware listed in this パワー ステアリング オイル ライン?
The hardware and components featured in the パワー ステアリング オイル ライン are specific to the 3 Series E36 318i produced during 1995. These technical specifications ensure that parts like the フィード ホース (32411093116) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the パワー ステアリング オイル ライン assembly?
Each item in the パワー ステアリング オイル ライン corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the フィード ホース by locating its position on the schematic, which then links to the official BMW part number 32411093116 for the ステアリング / ホィール アライメント section.
