ファイナル ドライブ インプット/アウトプット for BMW 5 Series F18 LCI 520Li (2012)

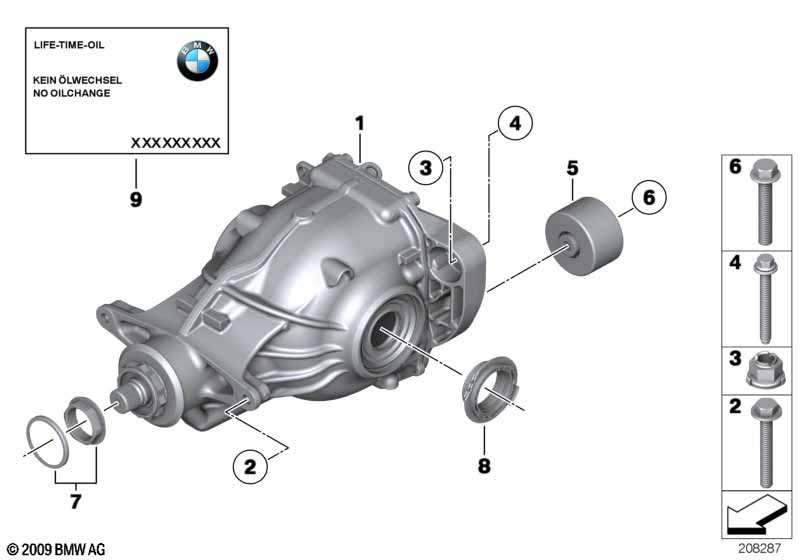

This ファイナル ドライブ インプット/アウトプット technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 LCI 520Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ファイナル ドライブ | I=3,91 | 1 | 05397623129 | Shop at ECS Tuning | |||||
| 以下の組み合わせのみ | ||||||||||
| -- | ロック リング | D=26,7 | 1 | 33131213997 | $0.29 | Shop at ECS Tuning | ||||
| 注意! リペア マニュアルを順守すること |
||||||||||
| -- | 取付けリング | 1 | 33137555749 | $9.77 | Shop at ECS Tuning | |||||
| 注意! リペア マニュアルを順守すること |
||||||||||
| 以下の装備車用 オートマ ミッション または スポーツ A/T または AT パドル スイッチ付き |
S205A=はい S2TBA=はい S2TEA=はい |
|||||||||
| 01 | ファイナル ドライブ | I=3,23 | 1 | 33107584444 | Shop at ECS Tuning | |||||
| 以下の組み合わせのみ | ||||||||||
| -- | ロック リング | D=22,4 | 1 | 33131214961 | $0.29 | Shop at ECS Tuning | ||||
| 注意! リペア マニュアルを順守すること |
||||||||||
| -- | 取付けリング | 1 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 注意! リペア マニュアルを順守すること |
||||||||||
| 02 | 六角ボルト ワッシャー付き | M12X1,5X110 | 2 | 07119906460 | Shop at ECS Tuning | |||||
| 03 | コンビネーション ナット | M14X1,5-10ZNNIV | 1 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 04 | 六角ボルト ワッシャー付き | M14X1,5X133ZNS3 | 1 | 33176760336 | $8.88 | Shop at ECS Tuning | ||||
| 05 | ダンパー | 48HZ | 1 | 33117631556 | +core | Shop at ECS Tuning | ||||
| 以下の組み合わせのみ | ||||||||||
| -- | 六角ボルト | M12X1,5X75 | 1 | 33107592363 | Shop at ECS Tuning | |||||
| 06 | 六角ボルト | M12X1,5X75 | 1 | 33107592363 | Shop at ECS Tuning | |||||
| 07 | リペア キット インサート ナット、青 | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| 注意! リペア マニュアルを順守すること |
||||||||||
| 08 | 取付けリング | 2 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 09 | ラベル | DE, EN | 1 | 01399791197 | $4.25 | Shop at ECS Tuning | ||||
| 10 | Hypoid Axle Oil G1 | 0,5L | X | 07/2011 | 83222295532 | Shop at ECS Tuning | ||||
| 充填量は追加情報を参照 | ||||||||||
備考
- +core = コア追加料金 (取り外したパーツを返却する必要があるかもしれません)
