A/T ペダル装置 for BMW 5 Series G31 ツーリング LCI 530e (2019)

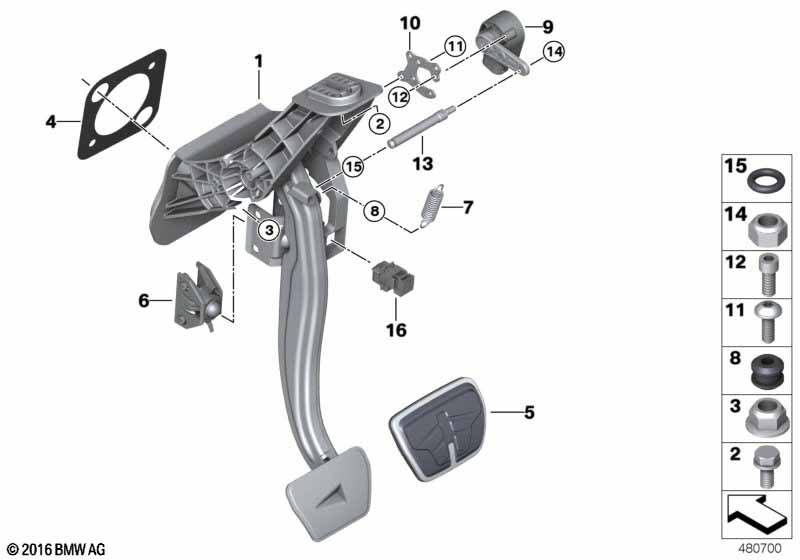

This A/T ペダル装置 technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 ツーリング LCI 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 以下の装備車用 M スポーツ パッケージ または M Sport X または Modell M Sport または M Sport X または M Sport Edition または BMW Individual komp. mit M Sport um または モデル M SPORT INDIVIDUAL または M テク エアロ ダイナミクス パッケージ |
P337A=はい P33AA=はい P7LFA=はい P7LNA=はい P7MHA=はい PXC5A=はい PXC6A=はい S715A=はい |
||||||||
| 01 | ペダル装置 ASSY | 1 | 35006866486 | Shop at ECS Tuning | ||||||
| 以下の組み合わせのみ | ||||||||||
| -- | ステンレスインサート付ペダルコーティング | 1 | 35216885852 | Shop at ECS Tuning | ||||||
| 02 | 六角ボルト ワッシャー付き | M8X25-8.8-ZNNIV | 1 | 07119905394 | $0.64 | Shop at ECS Tuning | ||||
| 取付けボルト ベアリング サポート |
||||||||||
| 03 | セルフ ロック カラー ナット | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 取付けボルト ベアリング サポート |
||||||||||
| 04 | ブレーキ ブースター シール | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| 05 | ステンレスインサート付ペダルコーティング | 1 | 35216885852 | Shop at ECS Tuning | ||||||
| ブレーキ ペダル | ||||||||||
| 06 | ボールヘッド ホルダー | 1 | 35006891934 | Shop at ECS Tuning | ||||||
| 取付けボルト ブレーキ ブースター |
||||||||||
| 07 | ブレーキ ペダル リターン スプリング | 1 | 35216772695 | $4.92 | Shop at ECS Tuning | |||||
| 08 | スリーブ | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| ブレーキ ペダル | ||||||||||
| 09 | ブレーキ ペダル ストローク センサー | 1 | 35006855309 | Shop at ECS Tuning | ||||||
| 以下の装備車用 ナイト ビジョン 歩行者検知 |
S6UKA=いいえ |
|||||||||
| 10 | ホルダー ブレーキペダル-距離-センサー | 1 | 35006861781 | Shop at ECS Tuning | ||||||
| 11 | タッピング スクリュー | 5X14 | 3 | 07146973628 | Shop at ECS Tuning | |||||
| 取付けボルト ホルダー |
||||||||||
| 12 | ISAボルト | M5X10 | 2 | 07129904491 | Shop at ECS Tuning | |||||
| 取付けボルト センサー |
||||||||||
| 13 | ピン ブレーキ ペダル距離センサー | 1 | 35006866489 | Shop at ECS Tuning | ||||||
| 14 | セルフロック六角ナット | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 取付けボルト ドライバ |
||||||||||
| 15 | O リング | 5X2 | 1 | 11421284113 | $0.79 | Shop at ECS Tuning | ||||
| 16 | ブレーキ ライト スイッチ | 1 | 35006876896 | Shop at ECS Tuning | ||||||
