F インシュレーター for BMW 5 Series E28 533i (1984)

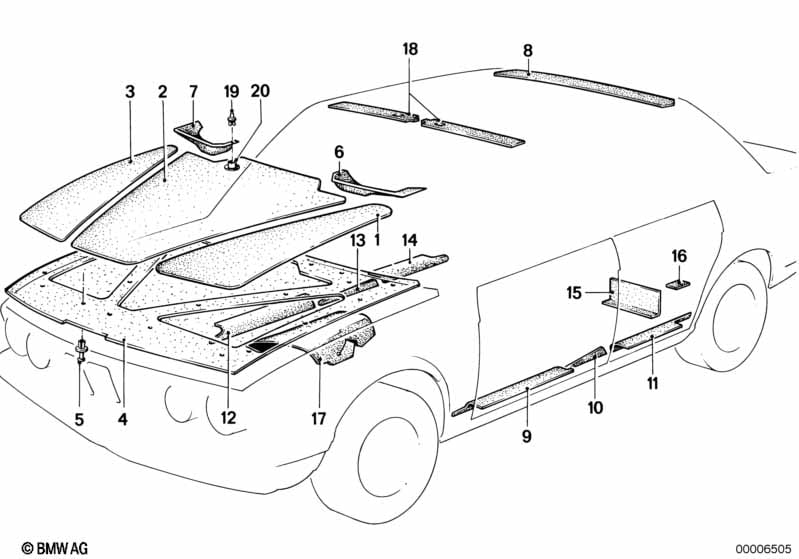

This F インシュレーター technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 533i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ダンパー パッド LH | 1 | 51481881593 | $19.46 | Shop at ECS Tuning | |||||
| 02 | ダンパー パッド センター | 1 | 51481881592 | $50.73 | Shop at ECS Tuning | |||||
| 03 | ダンパー パッド RH | 1 | 51481881594 | $19.46 | Shop at ECS Tuning | |||||
| 06 | インシュレーター LH | 1 | 51481904313 | $27.64 | Shop at ECS Tuning | |||||
| 07 | インシュレーター RH | 1 | 51481904314 | $27.64 | 生産終了 | Shop at ECS Tuning | ||||
| 08 | インシュレーター R ウィンドウ フレーム | 1 | 51481903989 | $7.36 | 生産終了 | Shop at ECS Tuning | ||||
| 09 | インシュレーター、サイド メンバー LH | 1 | 51481879471 | $7.59 | 生産終了 | Shop at ECS Tuning | ||||
| 10 | センター インシュレーター | 1 | 51481903985 | $1.06 | 生産終了 | Shop at ECS Tuning | ||||
| 11 | インシュレーター、サイド メンバー LH | 1 | 51481879473 | 生産終了 | Shop at ECS Tuning | |||||
| 12 | インシュレーター、サイド メンバー RH | 1 | 51481879472 | 生産終了 | Shop at ECS Tuning | |||||
| 13 | センター インシュレーター | 1 | 51481903986 | 生産終了 | Shop at ECS Tuning | |||||
| 14 | インシュレーター、サイド メンバー RH | 1 | 51481879474 | 生産終了 | Shop at ECS Tuning | |||||
| 15 | インシュレーター | 2 | 51481903991 | $1.95 | 生産終了 | Shop at ECS Tuning | ||||
| 16 | ダンピング ピース | 2 | 51481904004 | $1.00 | 生産終了 | Shop at ECS Tuning | ||||
| 17 | インシュレーター、コンソール | 1 | 51481904008 | $20.20 | 生産終了 | Shop at ECS Tuning | ||||
| 以下の装備車用 A/C |
=はい |
|||||||||
| 17 | インシュレーター、コンソール | 1 | 51481902710 | $22.88 | 生産終了 | Shop at ECS Tuning | ||||
| 19 | リベット | 4 | 51481905599 | $0.77 | Shop at ECS Tuning | |||||
| 20 | プッシュ ボタン | D=30MM;H=13MM | 4 | 51481906207 | $0.48 | Shop at ECS Tuning | ||||
備考
- 生産終了 = このパーツの製造は終了しています。在庫のみ
