インシュレーター for BMW MINI Clubman R55 Cooper (2006)

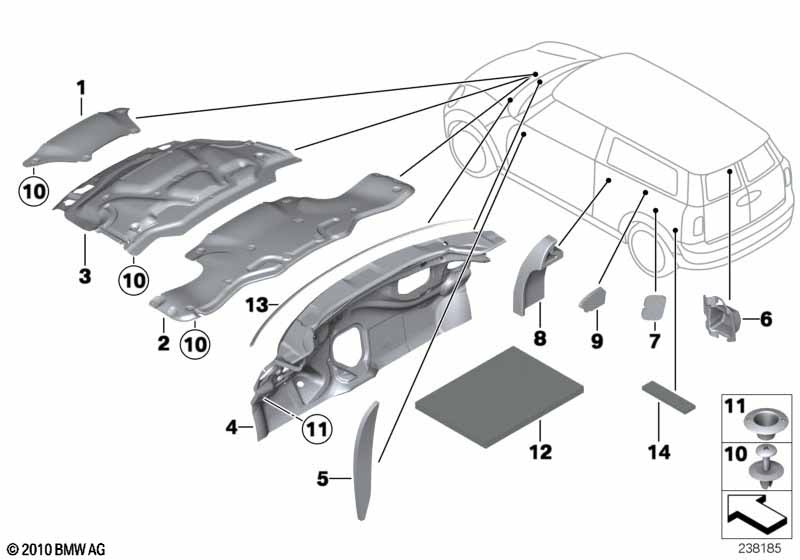

This インシュレーター technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Fパネル上部防音材 | 1 | 51487138435 | $110.48 | 生産終了 | Shop at ECS Tuning | ||||
| 06 | インシュレーター R ドア RH | 1 | 01/2012 | 51487167610 | $20.88 | Shop at ECS Tuning | ||||
| 07 | R フェンダー防音材 | 2 | 51472756997 | $11.70 | Shop at ECS Tuning | |||||
| 08 | R フェンダー防音材 LH | 1 | 06/2009 | 51482754859 | $10.63 | Shop at ECS Tuning | ||||
| 08 | R フェンダー防音材 LH | 1 | 51487235271 | Shop at ECS Tuning | ||||||
| 09 | ベルト リトラクター インシュレーター | 2 | 51486973631 | $4.88 | Shop at ECS Tuning | |||||
| 11 | 固定エレメント | 4 | 07130766384 | $0.25 | Shop at ECS Tuning | |||||
| 12 | サウンド インシュレーター | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 13 | 防音材 フロント ウィンドウ | 1418X15MM | 1 | 51487941312 | NoS | Shop at ECS Tuning |
備考
- 生産終了 = このパーツの製造は終了しています。在庫のみ
- NoS = No Stock (部品センターに保管されていない。)
