補助ヒーター/Pベンチレーション ケーブル for BMW 5 Series E34 525tds (1993)

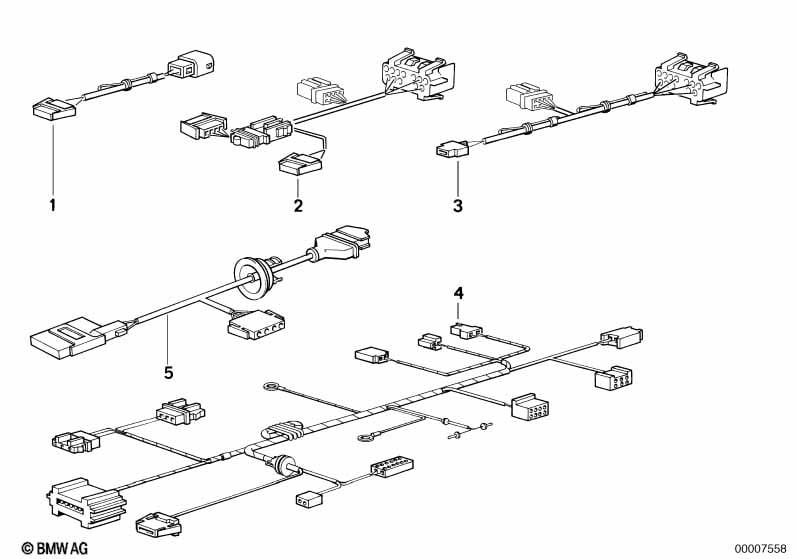

This 補助ヒーター/Pベンチレーション ケーブル technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ヒーターにのみ適合 IHKR 2 にのみ適合 |
||||||||||
| 02 | P ベンチレーション ケーブル セット | 1 | 09/1992 | 61128359188 | $78.48 | 生産終了 | Shop at ECS Tuning | |||
| IHKA にのみ適合 IHKRF 1 にのみ適合 |
||||||||||
| 03 | P ベンチレーション ケーブル セット | 1 | 06/1990 | 61128351218 | 生産終了 | Shop at ECS Tuning | ||||
| IHKA にのみ適合 | ||||||||||
| 04 | 補助ヒーター/Pベンチレーション ケーブル | 1 | 61128365692 | 生産終了 | Shop at ECS Tuning | |||||
| ヒーターにのみ適合 IHKR 2 にのみ適合 |
||||||||||
| 04 | 補助ヒーター/Pベンチレーション ケーブル | 1 | 09/1992 | 61128365690 | $200.88 | 生産終了 | Shop at ECS Tuning | |||
| IHKRF 1 にのみ適合 IHKR 3 にのみ適合 |
||||||||||
| 04 | 補助ヒーター/Pベンチレーション ケーブル | 1 | 09/1992 | 61128365693 | 生産終了 | Shop at ECS Tuning | ||||
| IHKR 2 にのみ適合 | ||||||||||
| 05 | AUC センサー ケーブル セット | 1 | 09/1991 | 61128359141 | 生産終了 | Shop at ECS Tuning | ||||
| IHKA にのみ適合 | ||||||||||
| 05 | AUC センサー ケーブル セット | 1 | 09/1991 | 61128359140 | 生産終了 | Shop at ECS Tuning | ||||
備考
- 生産終了 = このパーツの製造は終了しています。在庫のみ
