単体部品 電話 WCA/NFC for BMW 3 Series G28 セダン LCI 330Li (2021)

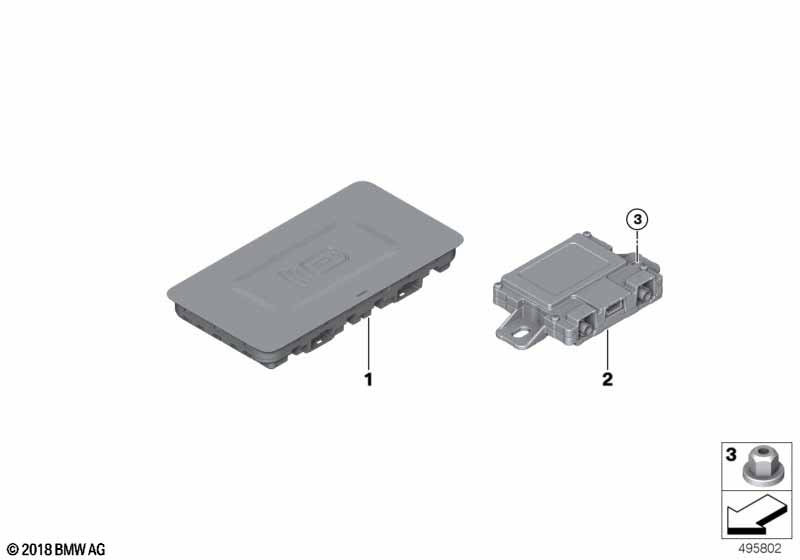

This 単体部品 電話 WCA/NFC technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 セダン LCI 330Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | 記述 | 補足 | 数量 | から | まで | パーツ番号 | 価格 | 備考 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 以下の装備車用 Storage tray wireless charging |
S6NXA=はい |
|||||||||
| 01 | Wireless Charging トレイ | WCA CS NFC LCI | 1 | 11/2023 | 84105A82C19 | 生産終了 | Shop at ECS Tuning | |||
| 01 | Wireless Charging トレイ | WCA CS NFC LCI | 1 | 11/2024 | 84105A7F847 | Shop at ECS Tuning | ||||
| 01 | Wireless Charging トレイ | WCA CS NFC LCI | 1 | 07/2025 | 84105B41FD5 | Shop at ECS Tuning | ||||
| 01 | Wireless Charging トレイ | WCA CS NFC LCI | 1 | 07/2025 | 84105B41FD5 | NoS | Shop at ECS Tuning | |||
| 以下の装備車用 Storage tray wireless charging および コントロールK |
S6NXA=はい S8WTA=いいえ |
|||||||||
| 01 | Wireless Charging トレイ | WCA CS NFC LCI | 1 | 11/2024 | 84105A7F847 | NoS | Shop at ECS Tuning | |||
備考
- 生産終了 = このパーツの製造は終了しています。在庫のみ
- NoS = No Stock (部品センターに保管されていない。)
