배기다기관 for BMW 5 Series E28 525i (1987)

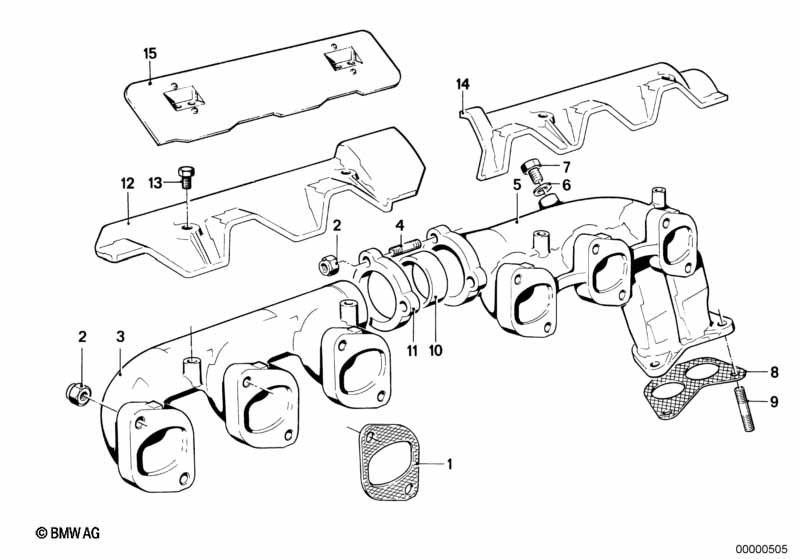

This 배기다기관 technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 비석면 가스켓 | 6 | 11621723851 | $5.70 | Shop at ECS Tuning | |||||
| 02 | 육각 너트,플랜지 포함 | M8 | X | 18307620549 | Shop at ECS Tuning | |||||
| 03 | 배기다기관, 앞 | 1 | 11621251417 | $128.03 | 단종 | Shop at ECS Tuning | ||||
| 04 | 스터드 볼트 | M8X40 | 3 | 07129908139 | $0.88 | Shop at ECS Tuning | ||||
| 05 | 배기다기관, 뒤 | 1 | 11621273544 | Shop at ECS Tuning | ||||||
| 06 | 씰링 링 | A8X11,5-AL | 2 | 07119963041 | $0.57 | Shop at ECS Tuning | ||||
| 07 | 씰링 플러그 | CM8X1 | 2 | 07119919210 | $2.24 | Shop at ECS Tuning | ||||
| 08 | 비석면 가스켓 | 1 | 18111728363 | $17.87 | Shop at ECS Tuning | |||||
| 09 | 스터드 볼트 | M10X35 | 6 | 11621711671 | $3.05 | Shop at ECS Tuning | ||||
| 10 | 씰링 링, 비석면 | 1 | 11621723889 | $14.68 | Shop at ECS Tuning | |||||
| 10 | 씰링 링, 비석면 | 1 | 11621723867 | Shop at ECS Tuning | ||||||
| 11 | 플랜지 | 1 | 11621251423 | $18.94 | Shop at ECS Tuning | |||||
| 13 | 육각머리볼트 | M6X16 | 4 | 07119913460 | 단종 | Shop at ECS Tuning | ||||
| 15 | 단열판,비석면 | 2 | 09/1982 | 11629068648 | 단종 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 525i 배기다기관?
- This technical diagram illustrates the 배기다기관 within the 엔진 group for the 5 Series E28 525i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the 비석면 가스켓 (Part #11621723851).
- Which models use the hardware listed in this 배기다기관?
- The hardware and components featured in the 배기다기관 are specific to the 5 Series E28 525i produced during 1987. These technical specifications ensure that parts like the 비석면 가스켓 (11621723851) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 배기다기관 assembly?
- Each item in the 배기다기관 corresponds to the numbered list below the illustration. For the 5 Series E28 525i, you can identify the 비석면 가스켓 by locating its position on the schematic, which then links to the official BMW part number 11621723851 for the 엔진 section.
