타이밍 밸브 트레인-캠축 타이밍 체인 for BMW 3 Series E46 318i (1998)

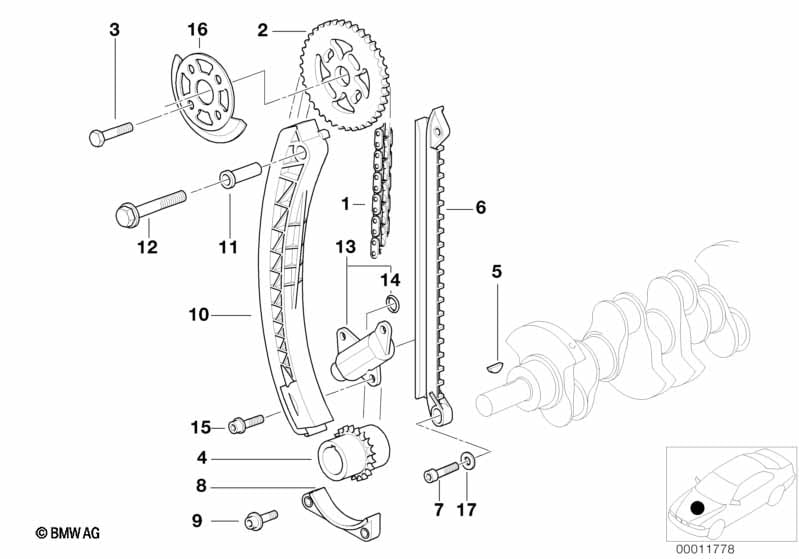

This 타이밍 밸브 트레인-캠축 타이밍 체인 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 타이밍 체인 | 1 | 11311734392 | $65.27 | Shop at ECS Tuning | |||||
| 02 | 스프로킷 | 1 | 11311435992 | $16.60 | Shop at ECS Tuning | |||||
| 03 | 육각머리볼트, 와셔 포함 | M7X20-U1 | 4 | 07119906642 | Shop at ECS Tuning | |||||
| 04 | 스프로킷 | 1 | 11211717913 | $28.13 | Shop at ECS Tuning | |||||
| 05 | 반달 키 | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 06 | 가이드 레일 | 1 | 11311435969 | $32.22 | Shop at ECS Tuning | |||||
| 07 | 납작머리 스크루,회전방지 로크포함 | M6X35-8.8-ZNS3 | 2 | 07129904259 | $2.51 | Shop at ECS Tuning | ||||
| 08 | 가이드 | 1 | 11311734694 | $16.28 | Shop at ECS Tuning | |||||
| 09 | 볼트,이너 톡스,와셔 포함 | M6X25-U1-8.8 | 2 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
| 10 | 텐셔닝 레일 | 1 | 11311435970 | $31.63 | Shop at ECS Tuning | |||||
| 11 | 부싱 | 1 | 11311247452 | $5.98 | Shop at ECS Tuning | |||||
| 12 | 육각머리볼트 | M8X50-U1-8.8 | 1 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 13 | 체인 텐셔너 | 1 | 11311247952 | $61.43 | Shop at ECS Tuning | |||||
| 14 | O-링 | 9 X 1,5 | 1 | 11121247857 | Shop at ECS Tuning | |||||
| 15 | 팬 볼트, 와셔 포함 | M6X20-Z1 10.9 | 3 | 07119900678 | $0.71 | Shop at ECS Tuning | ||||
| 16 | 펄스 센서 휠 | 1 | 11311435847 | Shop at ECS Tuning | ||||||
| 17 | 와셔 | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i 타이밍 밸브 트레인-캠축 타이밍 체인?
- This technical diagram illustrates the 타이밍 밸브 트레인-캠축 타이밍 체인 within the 엔진 group for the 3 Series E46 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the 타이밍 체인 (Part #11311734392).
- Which models use the hardware listed in this 타이밍 밸브 트레인-캠축 타이밍 체인?
- The hardware and components featured in the 타이밍 밸브 트레인-캠축 타이밍 체인 are specific to the 3 Series E46 318i produced during 1998. These technical specifications ensure that parts like the 타이밍 체인 (11311734392) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 타이밍 밸브 트레인-캠축 타이밍 체인 assembly?
- Each item in the 타이밍 밸브 트레인-캠축 타이밍 체인 corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the 타이밍 체인 by locating its position on the schematic, which then links to the official BMW part number 11311734392 for the 엔진 section.
