실린더 헤드-설치부품 for BMW 3 Series E46 M3

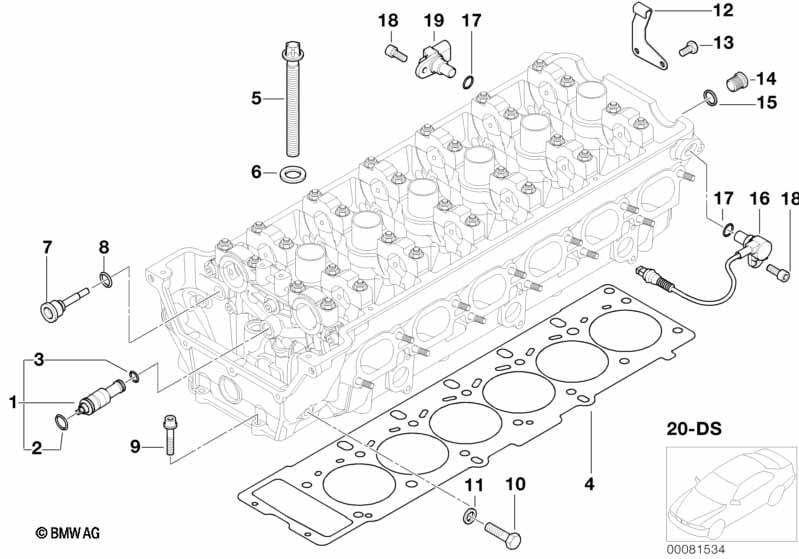

This 실린더 헤드-설치부품 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 레귤레이팅 밸브 | 1 | 11367830341 | $89.08 | Shop at ECS Tuning | |||||
| 02 | O-링 | 16X2MM | 1 | 11411306082 | $2.42 | Shop at ECS Tuning | ||||
| 03 | O-링 | 10,0X2,0MM | 1 | 11311317318 | $1.27 | Shop at ECS Tuning | ||||
| 04 | 실린더 헤드 가스켓 | 0.64MM | 1 | 11127835918 | $119.83 | Shop at ECS Tuning | ||||
| 05 | 세트,실린더 헤드용 볼트 | M11X99 | 1 | 11127831862 | $53.70 | Shop at ECS Tuning | ||||
| 06 | 와셔 | 14 | 11121317361 | $1.03 | Shop at ECS Tuning | |||||
| 07 | 베어링 핀 | 1 | 11317830377 | $21.22 | Shop at ECS Tuning | |||||
| 08 | 씰링 링 | A20X24-CU | 1 | 07119963342 | $0.24 | Shop at ECS Tuning | ||||
| 09 | Isa-볼트와 와셔 | M6X30-U0-8.8 | 2 | 07129905537 | $1.09 | Shop at ECS Tuning | ||||
| 10 | 칼라 볼트 | M8X31 | 1 | 11111736005 | $0.77 | Shop at ECS Tuning | ||||
| 11 | 씰링 링 | A8X13X1-AL | 1 | 07119903546 | $0.16 | Shop at ECS Tuning | ||||
| 12 | 서포트 플레이트 | 1 | 11127831228 | $4.06 | Shop at ECS Tuning | |||||
| 13 | 육각머리볼트 | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 14 | 씰링 플러그 | M16X1,5 | 2 | 11127838066 | $3.77 | Shop at ECS Tuning | ||||
| 15 | 씰링 링 | A16X20-AL | 2 | 07119963252 | $0.57 | Shop at ECS Tuning | ||||
| 16 | 캠축 센서 | 1 | 12147539171 | $116.05 | Shop at ECS Tuning | |||||
| 17 | O-링 | 17X3 | 2 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 19 | 캠축 센서 | 1 | 13627796054 | $116.05 | Shop at ECS Tuning | |||||
| 씰링세트, 실린더헤드가스켓,미포함 | ||||||||||
| 20 | 씰링 세트, 실린더 헤드, 비석면 | 1 | 11127831920 | $430.17 | 단종 | Shop at ECS Tuning | ||||
주의
- ENDED = 이부품은 단종되었습니다
