배기-터보차저(윤활 포함) for BMW 6 Series F13 650i

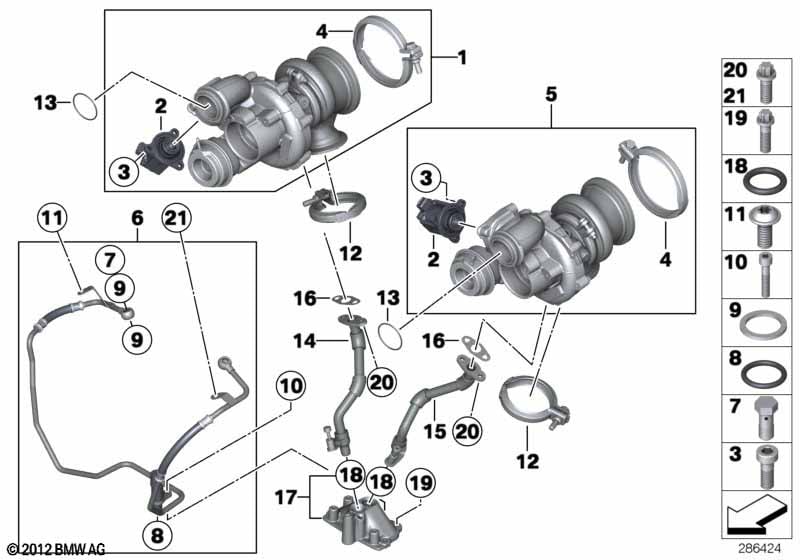

This 배기-터보차저(윤활 포함) technical drawing provides a detailed breakdown of the assembly for the 6 Series F13 650i. It includes part names, part numbers and all associated mounting hardware.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 재제조 부품 배기-터보차저 | REMAN | 1 | 03/2012 | 11652470353 | Shop at ECS Tuning | ||||
| 다음과 결합해서만 | ||||||||||
| -- | 설치 세트 배기-터보차저 | VALUE PARTS | 1 | 03/2012 | 11652456345 | Shop at ECS Tuning | ||||
| 반드시 정비 매뉴얼 11 65 020에 따르십시오! | ||||||||||
| 01 | 배기가스 터보 차저 | 1 | 03/2012 | 11657646092 | Shop at ECS Tuning | |||||
| 다음과 결합해서만 | ||||||||||
| 01 | 터보차저 | 1 | 03/2012 | 11657576985 | 단종 | Shop at ECS Tuning | ||||
| 다음과 결합해서만 | ||||||||||
| -- | 설치 세트 배기-터보차저 | VALUE PARTS | 1 | 03/2012 | 11652456345 | Shop at ECS Tuning | ||||
| 02 | 전기-밸브 | 2 | 03/2012 | 11657602293 | Shop at ECS Tuning | |||||
| 03 | 냄비머리 볼트 | M6X16-8.8-ZNS3 | 6 | 03/2012 | 07119906392 | Shop at ECS Tuning | ||||
| 04 | V 리본 클립 | D=108,4 | 2 | 03/2012 | 11658585233 | Shop at ECS Tuning | ||||
| 05 | 재제조 부품 배기-터보차저 | REMAN | 1 | 03/2012 | 11652470353 | Shop at ECS Tuning | ||||
| 다음과 결합해서만 | ||||||||||
| -- | 설치 세트 배기-터보차저 | VALUE PARTS | 1 | 03/2012 | 11652456348 | Shop at ECS Tuning | ||||
| 반드시 정비 매뉴얼 11 65 020에 따르십시오! | ||||||||||
| 05 | 배기가스 터보 차저 | 1 | 03/2012 | 11657646092 | Shop at ECS Tuning | |||||
| 다음과 결합해서만 | ||||||||||
| 05 | 터보차저 | 1 | 03/2012 | 11657576985 | 단종 | Shop at ECS Tuning | ||||
| 다음과 결합해서만 | ||||||||||
| -- | 설치 세트 배기-터보차저 | VALUE PARTS | 1 | 03/2012 | 11652456348 | Shop at ECS Tuning | ||||
| 06 | 오일 파이프 | 1 | 02/2012 | 11427634679 | +대품 | Shop at ECS Tuning | ||||
| 07 | 중공볼트 | M10 | 2 | 03/2012 | 11428627197 | Shop at ECS Tuning | ||||
| 07 | 중공볼트 | M10 | 2 | 11429847270 | Shop at ECS Tuning | |||||
| 08 | O-링 | 11X1,78 | 1 | 03/2012 | 11427590576 | Shop at ECS Tuning | ||||
| 09 | 씰링 링 | A10X13,5-CU | 4 | 03/2012 | 07119963072 | $0.11 | Shop at ECS Tuning | |||
| 10 | Isa-볼트 | M8X40-8.8-ZNS3 | 1 | 03/2012 | 07129904704 | $3.68 | Shop at ECS Tuning | |||
| 11 | Isa-볼트 | M6X14 MK | 1 | 03/2012 | 46547694305 | $2.63 | Shop at ECS Tuning | |||
| 12 | V 리본 클립 | 2 | 03/2012 | 11657620507 | Shop at ECS Tuning | |||||
| 13 | O-링 | 41X2 | 2 | 03/2012 | 11657577018 | $1.81 | Shop at ECS Tuning | |||
| 14 | 리턴라인 | ZYL. 1-4 | 1 | 03/2012 | 11429454094 | Shop at ECS Tuning | ||||
| 15 | 리턴라인 | ZYL. 5-8 | 1 | 03/2012 | 11429454095 | Shop at ECS Tuning | ||||
| 16 | 비석면 가스켓 | 2 | 03/2012 | 11428624158 | Shop at ECS Tuning | |||||
| 17 | 오일 리턴 캡 | 1 | 03/2012 | 11427935572 | Shop at ECS Tuning | |||||
| 18 | O-링 | 13,8X2,64 | 2 | 03/2012 | 11427578079 | $1.17 | Shop at ECS Tuning | |||
| 19 | ASA 볼트 | M6X20-8.8-ZNNIV | 4 | 03/2012 | 07129907102 | Shop at ECS Tuning | ||||
| 20 | 볼트,바깥쪽톡스 | M6X16-ZNNIV SI | 4 | 03/2012 | 07129902813 | $0.25 | Shop at ECS Tuning | |||
| 21 | 볼트,바깥쪽톡스 | M6X16-ZNNIV SI | 2 | 03/2012 | 07129902813 | $0.25 | Shop at ECS Tuning | |||
주의
- ENDED = 이부품은 단종되었습니다
- 코어(고품)=부가된 고품가격(고품의 반품가능성)
