예열플러그/온도센서/펄스제너레이터 for BMW 3 Series E36 325td

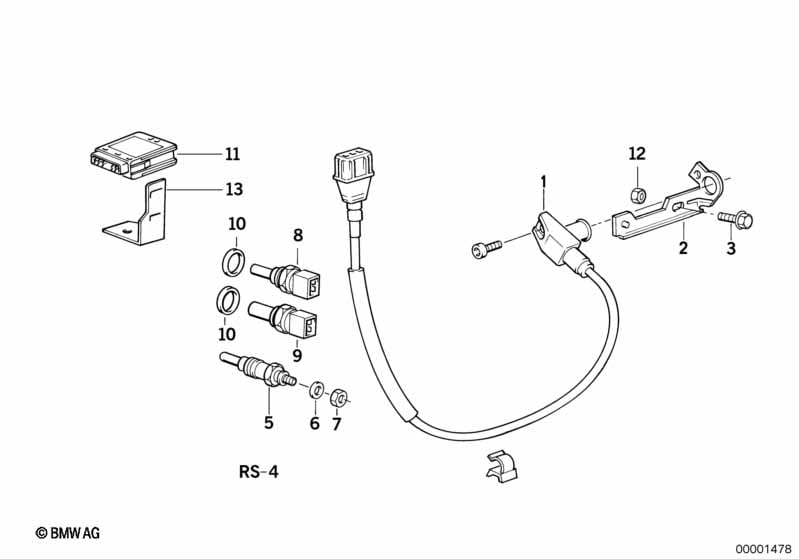

This 예열플러그/온도센서/펄스제너레이터 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325td. It includes part names, part numbers and all associated mounting hardware.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 회전속도센서 | 1 | 13622243560 | $142.05 | Shop at ECS Tuning | |||||
| 02 | 브래킷 | 1 | 12522246488 | Shop at ECS Tuning | ||||||
| 03 | 육각머리볼트, 와셔 포함 | M6X10-Z1 | 1 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 05 | 예열 플러그 | 4 SEK | 6 | 12232241389 | $25.12 | Shop at ECS Tuning | ||||
| 06 | 스프링 와셔 | B5 | 6 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 07 | 육각 너트 | M5-8-ZNNIV SI | 6 | 07119905729 | Shop at ECS Tuning | |||||
| 08 | 냉각수 온도센서 | M12X1,5 | 1 | 13622242184 | $37.35 | Shop at ECS Tuning | ||||
| 09 | 흡기 온도 센서 | 1 | 11613449116 | $32.95 | Shop at ECS Tuning | |||||
| 10 | 씰링 링 | A12X15-CU | 2 | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 11 | 릴레이,예열 플러그 | 1 | 07/1995 | 12212243562 | $100.30 | +대품 | Shop at ECS Tuning | |||
| 11 | 릴레이,예열 플러그 | 1 | 12212246473 | $136.55 | Shop at ECS Tuning | |||||
| 12 | 용접너트 | M6 | 1 | 07129904896 | $0.09 | Shop at ECS Tuning | ||||
| 13 | 홀더 | 1 | 12522243593 | $0.68 | Shop at ECS Tuning | |||||
| 14 | 홀더,플러그 컨넥터,백색 | 1 | 61131382503 | $0.93 | Shop at ECS Tuning |
주의
- 코어(고품)=부가된 고품가격(고품의 반품가능성)
