발전기,개별 부품 120/140A Bosch for BMW 3 Series E46 318Ci (2002)

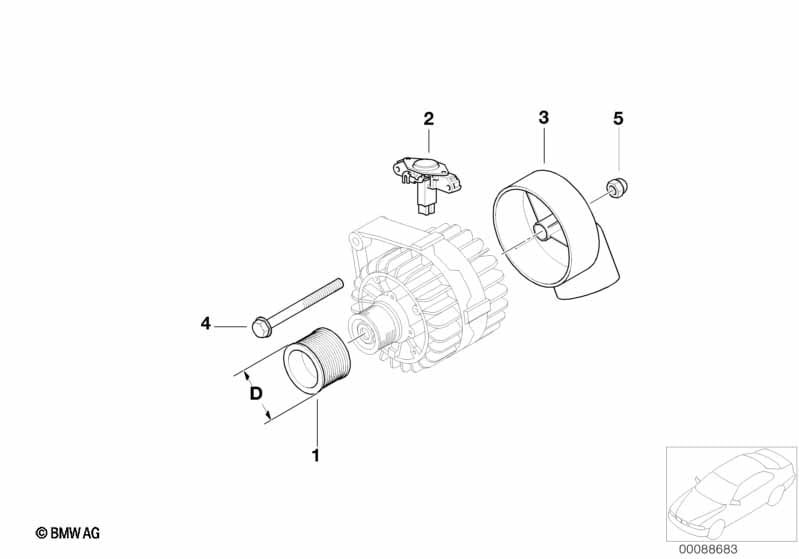

This 발전기,개별 부품 120/140A Bosch technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 풀리, 발전기 | BOSCH 6PK | 1 | 12317560483 | $92.35 | Shop at ECS Tuning | ||||
| 02 | 레귤레이터 | 150A | 1 | 04/2002 | 12317540656 | Shop at ECS Tuning | ||||
| 다음에만 적합 | ||||||||||
| -- | 소형 발전기 | 140A | X | 04/2002 | 12317521384 | Shop at ECS Tuning | ||||
| -- | AT 소형 발전기 | 140A | X | 04/2002 | 12317522959 | Shop at ECS Tuning | ||||
| 03 | 캡 | 1 | 12317505923 | Shop at ECS Tuning | ||||||
| 04 | 육각머리볼트, 와셔 포함 | M8X85-U1-8.8 | 3 | 07119906141 | $1.89 | Shop at ECS Tuning | ||||
| 05 | 캡 너트 | 1 | 12427565287 | $3.23 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318Ci 발전기,개별 부품 120/140A Bosch?
- This technical diagram illustrates the 발전기,개별 부품 120/140A Bosch within the 엔진-일렉트릭 group for the 3 Series E46 318Ci produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the 풀리, 발전기 (Part #12317560483).
- Which models use the hardware listed in this 발전기,개별 부품 120/140A Bosch?
- The hardware and components featured in the 발전기,개별 부품 120/140A Bosch are specific to the 3 Series E46 318Ci produced during 2002. These technical specifications ensure that parts like the 풀리, 발전기 (12317560483) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 발전기,개별 부품 120/140A Bosch assembly?
- Each item in the 발전기,개별 부품 120/140A Bosch corresponds to the numbered list below the illustration. For the 3 Series E46 318Ci, you can identify the 풀리, 발전기 by locating its position on the schematic, which then links to the official BMW part number 12317560483 for the 엔진-일렉트릭 section.
