공기질량계량기 for BMW 3 Series E46 328i (2000)

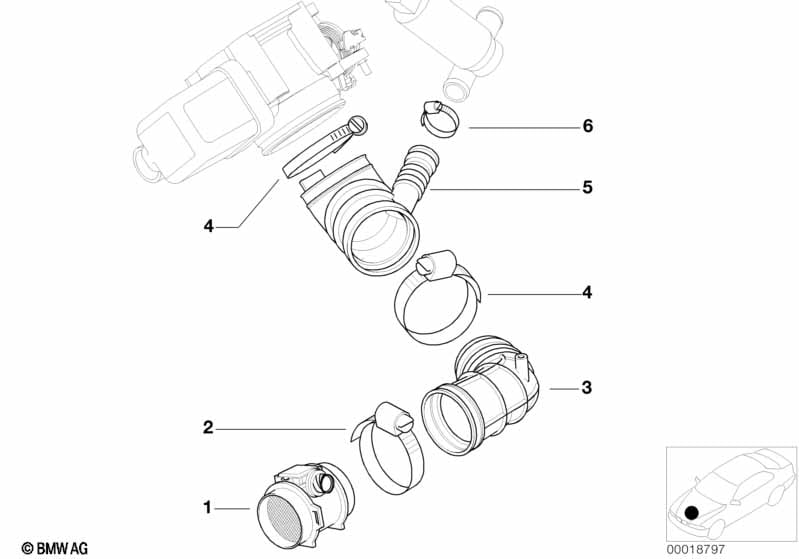

This 공기질량계량기 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 공전속도 제어밸브 참조, 메인 그룹 11 |
|||||||||
| 01 | 공기질량계량기 | 1 | 13621432356 | $402.32 | Shop at ECS Tuning | |||||
| 02 | 호스 클램프 | L83-90 | 1 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 03 | 고무 부트 | 1 | 13541705209 | $17.62 | Shop at ECS Tuning | |||||
| 04 | 호스 클램프 | L77-84 | 2 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 05 | 튜브 엘보우 | 1 | 13541435627 | $14.37 | Shop at ECS Tuning | |||||
| 다음과 결합해서만 | ||||||||||
| -- | 링 | 1 | 13541435626 | $1.93 | Shop at ECS Tuning | |||||
| -- | 호스 클램프 | L77-84 | 1 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 06 | 호스 클램프 | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 328i 공기질량계량기?
- This technical diagram illustrates the 공기질량계량기 within the 연료공급 group for the 3 Series E46 328i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the 공기질량계량기 (Part #13621432356).
- Which models use the hardware listed in this 공기질량계량기?
- The hardware and components featured in the 공기질량계량기 are specific to the 3 Series E46 328i produced during 2000. These technical specifications ensure that parts like the 공기질량계량기 (13621432356) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 공기질량계량기 assembly?
- Each item in the 공기질량계량기 corresponds to the numbered list below the illustration. For the 3 Series E46 328i, you can identify the 공기질량계량기 by locating its position on the schematic, which then links to the official BMW part number 13621432356 for the 연료공급 section.
