변속기 마운트 for BMW 5 Series E60 525i (2004)

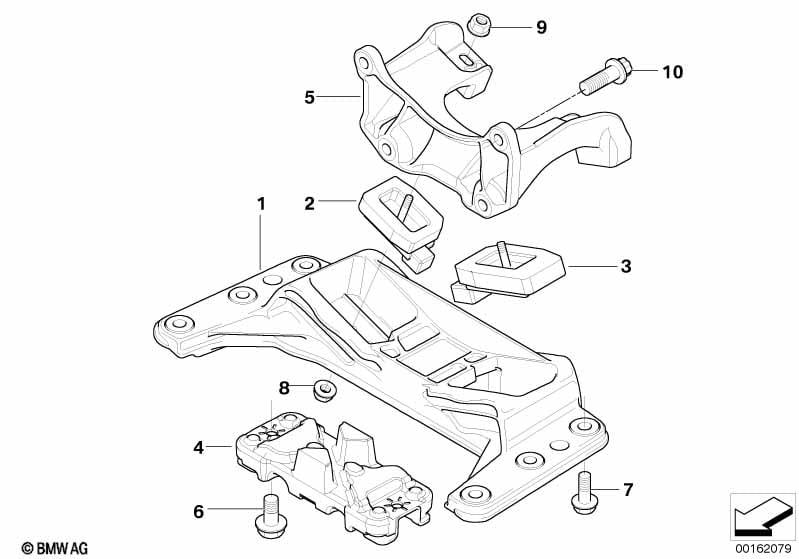

This 변속기 마운트 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 다음이 장착된 자동차용 자동변속기 |
S205A=예 |
|||||||||
| 01 | 변속기 서포트 | 1 | 22316776521 | $60.67 | 단종, +대품 | Shop at ECS Tuning | ||||
| 02 | 변속기 마운트 | 1 | 22316771741 | $13.05 | Shop at ECS Tuning | |||||
| 03 | 변속기 마운트 | 1 | 22316771741 | $13.05 | Shop at ECS Tuning | |||||
| 05 | 변속기 서포트 블록 | 1 | 22316776523 | $45.61 | +대품 | Shop at ECS Tuning | ||||
| 07 | 육각머리볼트, 와셔 포함 | M8X22-8.8-ZNS3 | 6 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 08 | 육각 너트 | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 09 | 육각 너트, 와셔 포함 | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Asa-볼트 | M10X35 ZNNIV SI | 4 | 07129905738 | Shop at ECS Tuning | |||||
주의
- ENDED = 이부품은 단종되었습니다
- 코어(고품)=부가된 고품가격(고품의 반품가능성)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i 변속기 마운트?
- This technical diagram illustrates the 변속기 마운트 within the 엔진-/변속기 마운트 group for the 5 Series E60 525i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the 변속기 서포트 (Part #22316776521).
- Which models use the hardware listed in this 변속기 마운트?
- The hardware and components featured in the 변속기 마운트 are specific to the 5 Series E60 525i produced during 2004. These technical specifications ensure that parts like the 변속기 서포트 (22316776521) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 변속기 마운트 assembly?
- Each item in the 변속기 마운트 corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the 변속기 서포트 by locating its position on the schematic, which then links to the official BMW part number 22316776521 for the 엔진-/변속기 마운트 section.
